EPMT 1.81.50.5-NF2:T7335
EPMT 1.81.50.5-NF2:T7335

EPMT 1.81.50.5-NF2:T7335

UGC DOR6755942
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.11 CAD - $10.11 CAD
$10.11 CAD
$10.11 CAD - $10.11 CAD
$10.11 CAD

Vendu en lots de : 10

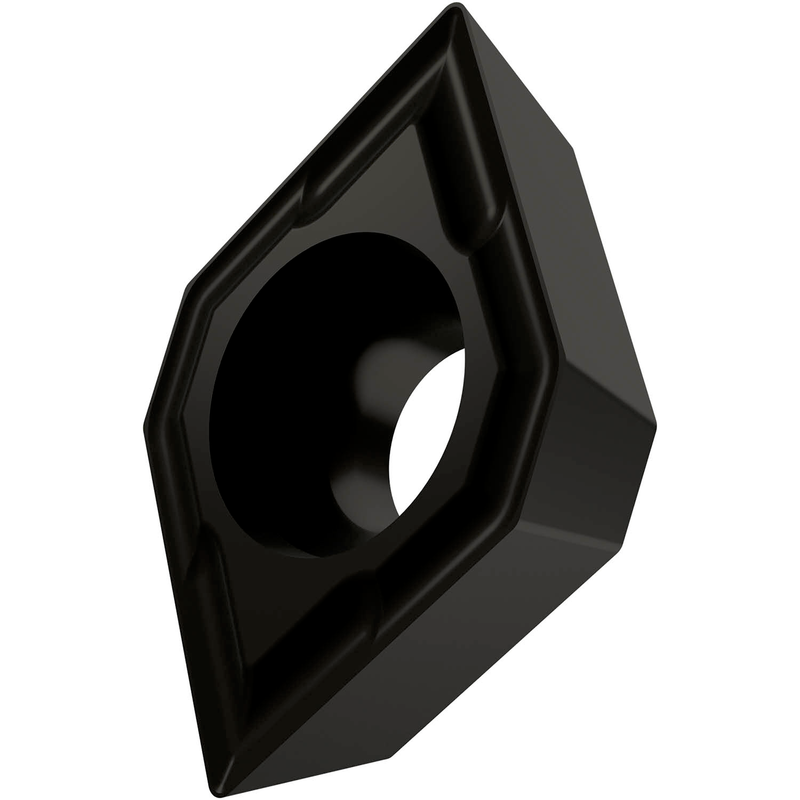

Plaquette de tournage positive simple face, rhomboïde 75° avec dépouille 11°, diamètre du cercle inscrit de 7/32, épaisseur 3/32", rayon de pointe 1/128" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux NF2, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO M20 - M40 et S15 - S25, pour l'usinage fin à moyen des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)EPMT 1.81.50.5-NF2:T7335
Product Name (ISO)EPMT 050202E-NF2:T7335
GradeT7335
Chipbreaker (CBMD)NF2
Product Number6755942
Product FamilyEPMT

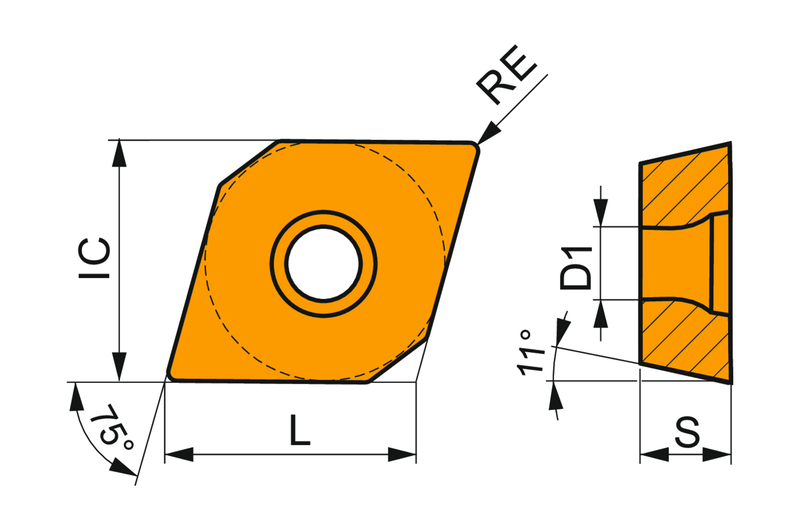

Insert Geometry
Insert DesignPMTE
Insert Shape Code (SC)E - angle de 75° inclus, losangique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.219"
Inscribed Circle Dia. — mm (IC)5.56 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number6755942
EAN3603602913081
File Type Download
EPMT 1.81.50.5-NF2:T7335 — Line Drawing PDF Download
