CNMX 6510SN-RF:T5315
CNMX 6510SN-RF:T5315

CNMX 6510SN-RF:T5315

UGC DOR6755943
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.79 CAD - $36.79 CAD
$36.79 CAD
$36.79 CAD - $36.79 CAD
$36.79 CAD

Vendu en lots de : 10

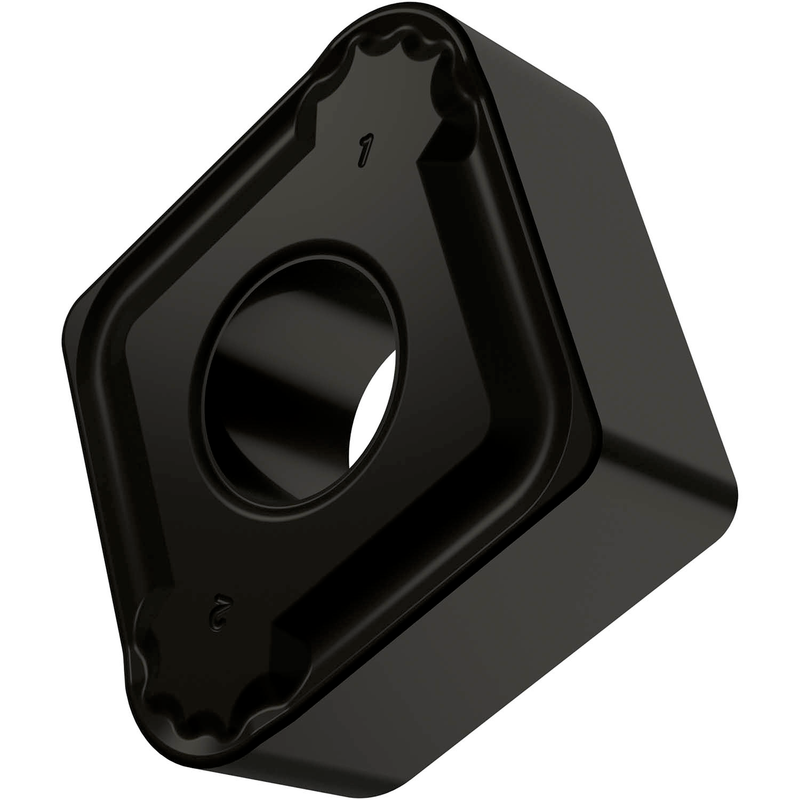

Plaquette négative spéciale pour tournage, rhomboïde à 80° avec un diamètre de cercle inscrit de 3/4", 5/16" d'épaisseur, rayon de bec de 5/32", précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux RF avec arêtes de coupe arrondies avec facette, en nuance T5315, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10 - K25, pour l'usinage lourd à moyen de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMX 6510SN-RF:T5315
Product Name (ISO)CNMX 190740SN-RF:T5315
GradeT5315
Chipbreaker (CBMD)RF
Product Number6755943
Product FamilyCNMX 19

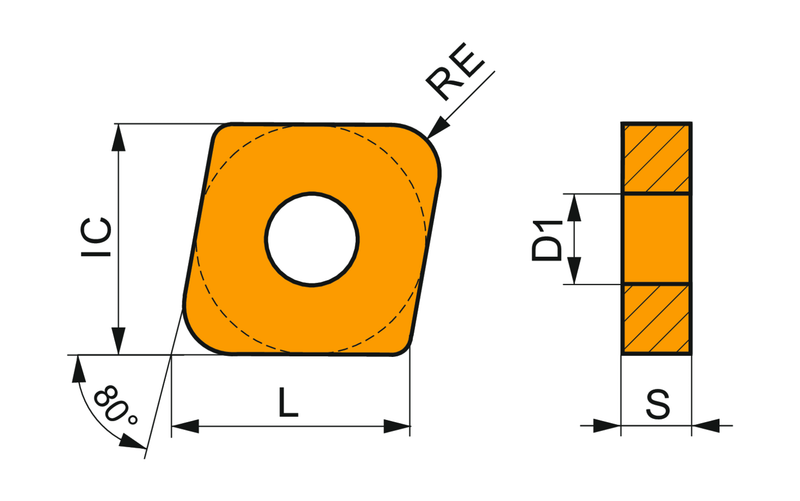

Insert Geometry
Insert DesignCNMX 19
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Corner Radius — in (RE)0.157"
Corner Radius — mm (RE)4 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Reference Numbers
EDP Number6755943
EAN3603602913098
File Type Download
CNMX 6510SN-RF:T5315 — Line Drawing PDF Download
