HZ 1309-100 P9:333TN
HZ 1309-100 P9:333TN

HZ 1309-100 P9:333TN

UGC DOR6755952
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$106.83 CAD - $106.83 CAD
$106.83 CAD
$106.83 CAD - $106.83 CAD
$106.83 CAD

Vendu en lots de : 2

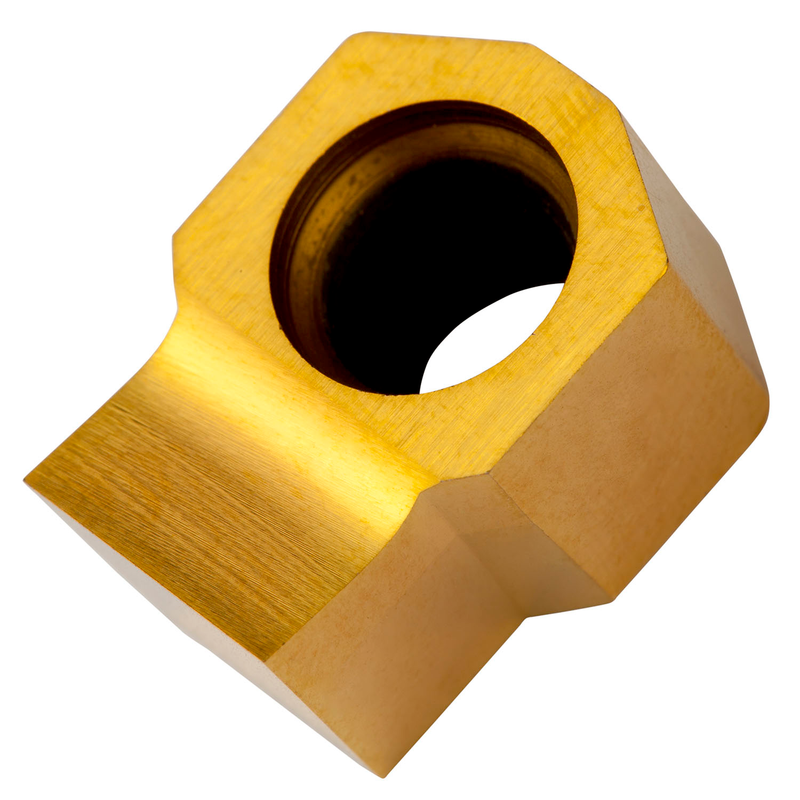

Plaquette pour rainurage et mortaisage à une arête pour brochage d'une largeur de 10mm dans la classe de tolérance P9, nuance 333TN HSS avec revêtement PVD dans la gamme de nuances ISO P45-P50 pour l'usinage de l'acier en combinaison avec une broche de taille PHZ…-13

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HZ 1309-100 P9:333TN
Grade333TN
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755952
Product FamilyHZ

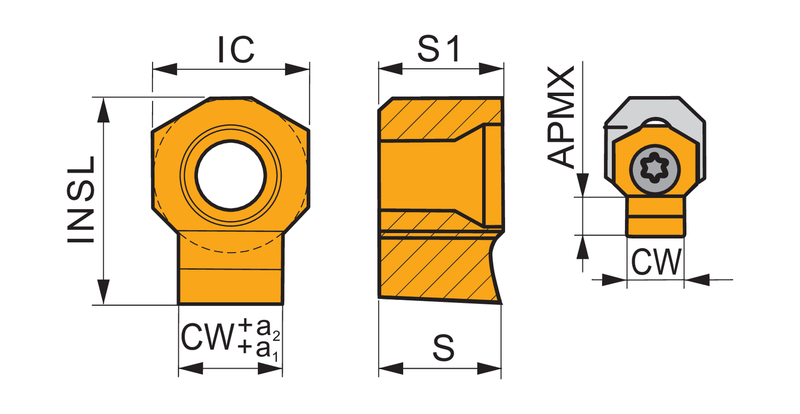

Insert Geometry
Insert DesignHZ
Insert Shape Code (SC)H - hexagonal
Inscribed Circle Dia. — in (IC)0.512"
Inscribed Circle Dia. — mm (IC)13.0 mm
Insert Thickness — in (S)0.37"
Insert Thickness — mm (S)9.4 mm
Depth of Cut Max — in (APMX)0.244"
Depth of Cut Max — mm (APMX)6.2 mm
Tool Information
Reference Numbers
EDP Number6755952
EAN3603602913180
File Type Download
HZ 1309-100 P9:333TN — Line Drawing PDF Download
