HZ 1309-120 D10:333TN
HZ 1309-120 D10:333TN

HZ 1309-120 D10:333TN

UGC DOR6755953
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$106.83 CAD - $106.83 CAD
$106.83 CAD
$106.83 CAD - $106.83 CAD
$106.83 CAD

Vendu en lots de : 2

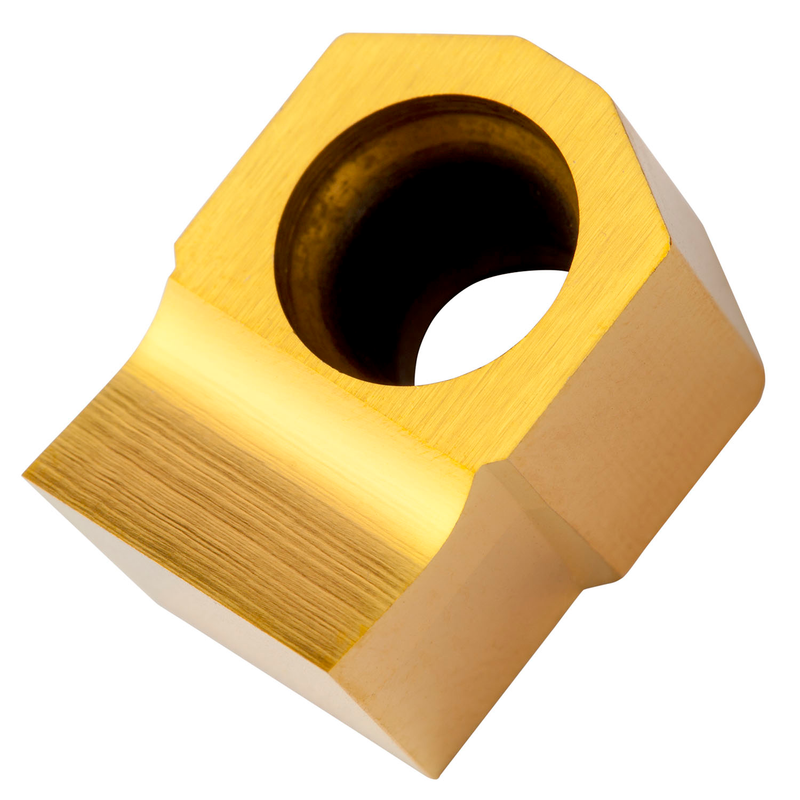

Plaquette pour rainure de clavette simple et mortaisage pour le brochage d'une largeur de 12 mm dans la classe de tolérance D10, en HSS revêtu PVD grade 333TN dans les gammes ISO P45-P50 pour l'usinage de l'acier en combinaison avec une broche de taille PHZ…-13

For more information about this product, click here

Identification
Ordering Code (ANSI)HZ 1309-120 J10:333TN
Product Name (ISO)HZ 1309-120 D10:333TN
Grade333TN
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755953
Product FamilyHZ

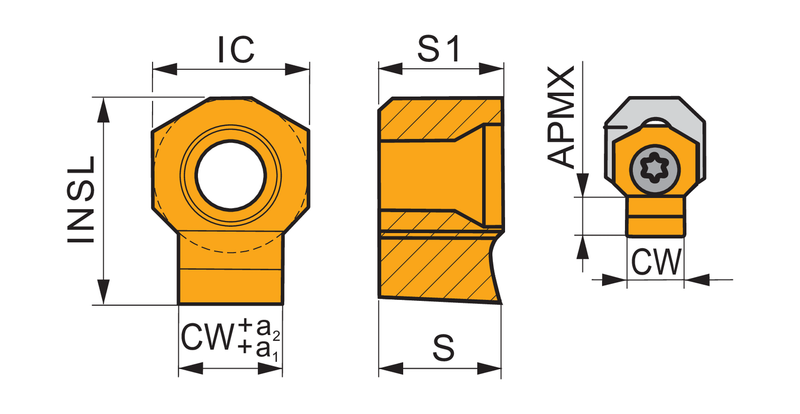

Insert Geometry
Insert DesignHZ
Insert Shape Code (SC)H - hexagonale
Inscribed Circle Dia. — in (IC)0.512"
Inscribed Circle Dia. — mm (IC)13.0 mm
Insert Thickness — in (S)0.37"
Insert Thickness — mm (S)9.4 mm
Depth of Cut Max — in (APMX)0.283"
Depth of Cut Max — mm (APMX)7.2 mm
Tool Information
Reference Numbers
EDP Number6755953
EAN3603602913197
File Type Download
HZ 1309-120 D10:333TN — Line Drawing PDF Download
