HZ 1309-120 P9:333TN
HZ 1309-120 P9:333TN

HZ 1309-120 P9:333TN

UGC DOR6755954
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$106.83 CAD - $106.83 CAD
$106.83 CAD
$106.83 CAD - $106.83 CAD
$106.83 CAD

Vendu en lots de : 2

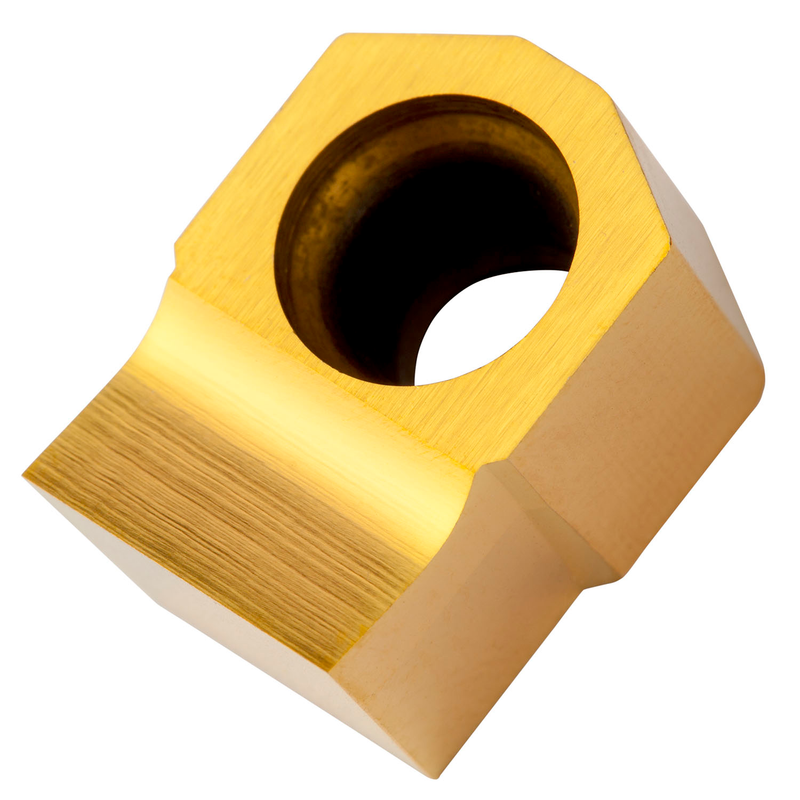

Plaquette pour rainure de clavette et rainurage simple pour le brochage d'une largeur de 12 mm dans la classe de tolérance P9, nuance 333TN HSS avec revêtement PVD dans les plages de nuances ISO P45-P50 pour l'usinage de l'acier en combinaison avec une broche de taille PHZ…-13

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HZ 1309-120 P9:333TN
Grade333TN
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755954
Product FamilyHZ

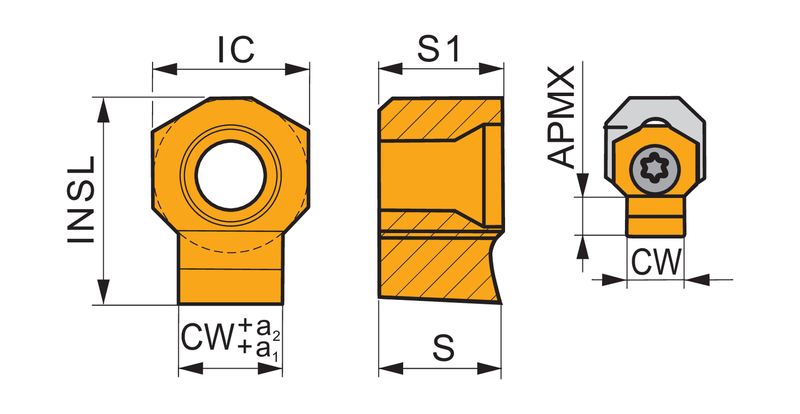

Insert Geometry
Insert DesignHZ
Insert Shape Code (SC)H - hexagonal
Inscribed Circle Dia. — in (IC)0.512"
Inscribed Circle Dia. — mm (IC)13.0 mm
Insert Thickness — in (S)0.37"
Insert Thickness — mm (S)9.4 mm
Depth of Cut Max — in (APMX)0.283"
Depth of Cut Max — mm (APMX)7.2 mm
Tool Information
Reference Numbers
EDP Number6755954
EAN3603602913203
File Type Download
HZ 1309-120 P9:333TN — Line Drawing PDF Download
