HZ/2 14-14 P9:333TN
HZ/2 14-14 P9:333TN

HZ/2 14-14 P9:333TN

UGC DOR6755955
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$287.14 CAD - $287.14 CAD
$287.14 CAD
$287.14 CAD - $287.14 CAD
$287.14 CAD

Vendu en lots de : 2

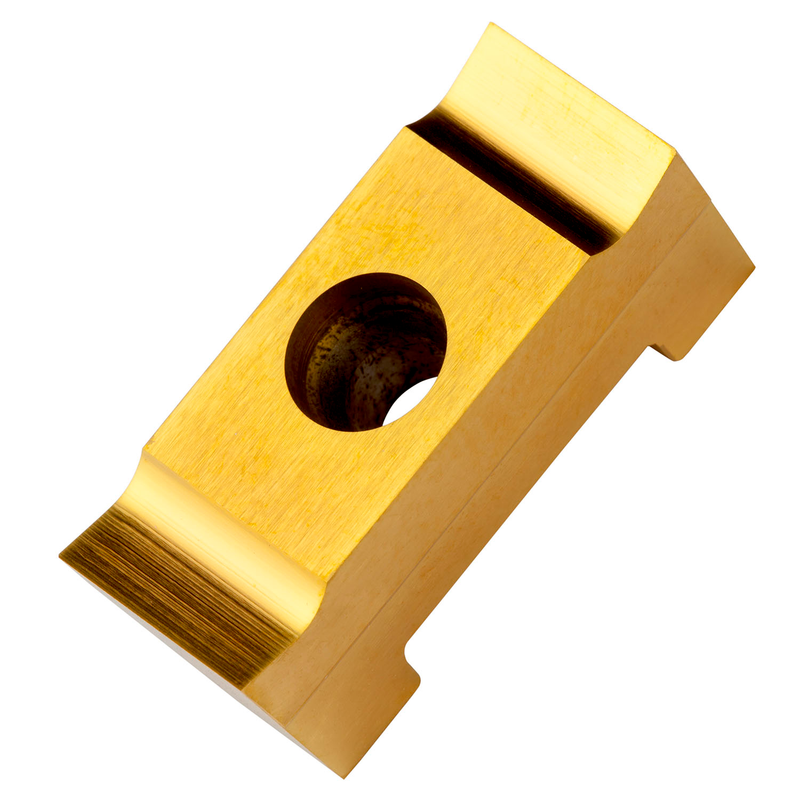

Goujure et rainure double avec insert pour le brochage d'une largeur de 14mm dans la classe de tolérance P9, nuance 333TN HSS avec revêtement PVD dans les plages de nuances ISO P45-P50 pour l'usinage de l'acier en combinaison avec une broche de taille PHZ-2…-14

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HZ/2 14-14 P9:333TN
Grade333TN
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755955
Product FamilyHZ-2
Insert Geometry
Insert DesignHZ-2
Insert Shape Code (SC)H - hexagonal
Insert Thickness — in (S)0.547"
Insert Thickness — mm (S)13.9 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6755955
EAN3603602913210
File Type Download

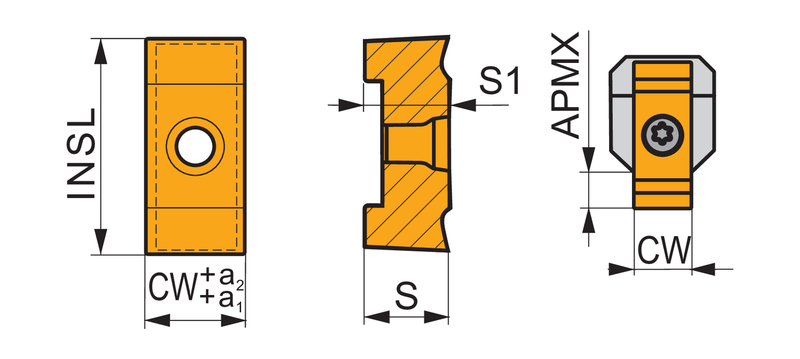

HZ/2 14-14 P9:333TN — Line Drawing PDF Download
