HZ90 0604-50 P9:333TN
HZ90 0604-50 P9:333TN

HZ90 0604-50 P9:333TN

UGC DOR6755961
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$69.33 CAD - $69.33 CAD
$69.33 CAD
$69.33 CAD - $69.33 CAD
$69.33 CAD

Vendu en lots de : 2

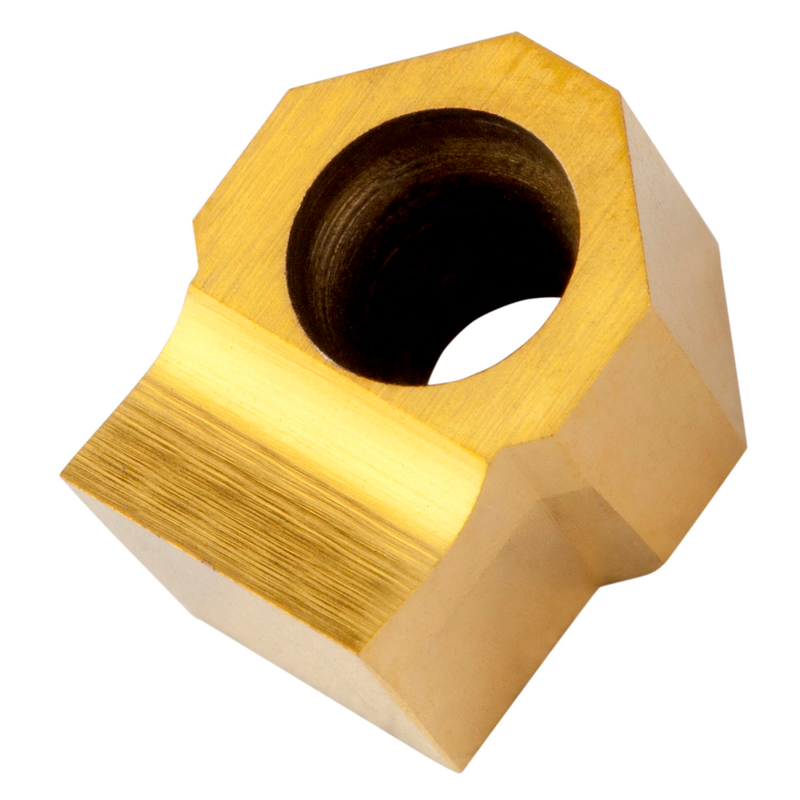

Plaquette à une seule extrémité pour le brochage de clavettes et de rainures d'une largeur de 5 mm dans la classe de tolérance P9, en HSS revêtu PVD de qualité 333TN dans les plages de nuances ISO P45-P50 pour l'usinage de l'acier en combinaison avec une broche de taille PHZ…-06

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HZ90 0604-50 P9:333TN
Grade333TN
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755961
Product FamilyHZ

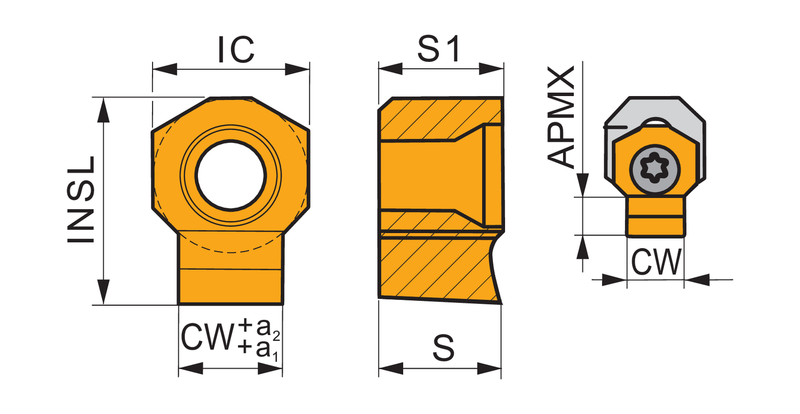

Insert Geometry
Insert DesignHZ
Insert Shape Code (SC)H - hexagonale
Inscribed Circle Dia. — in (IC)0.236"
Inscribed Circle Dia. — mm (IC)6.0 mm
Insert Thickness — in (S)0.183"
Insert Thickness — mm (S)4.66 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6755961
EAN3603602913272
File Type Download
HZ90 0604-50 P9:333TN — Line Drawing PDF Download
