RDHX 12T3MOT:M8345
RDHX 12T3MOT:M8345

RDHX 12T3MOT:M8345

UGC DOR6755966
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.14 CAD - $20.14 CAD
$20.14 CAD
$20.14 CAD - $20.14 CAD
$20.14 CAD

Vendu en lots de : 10

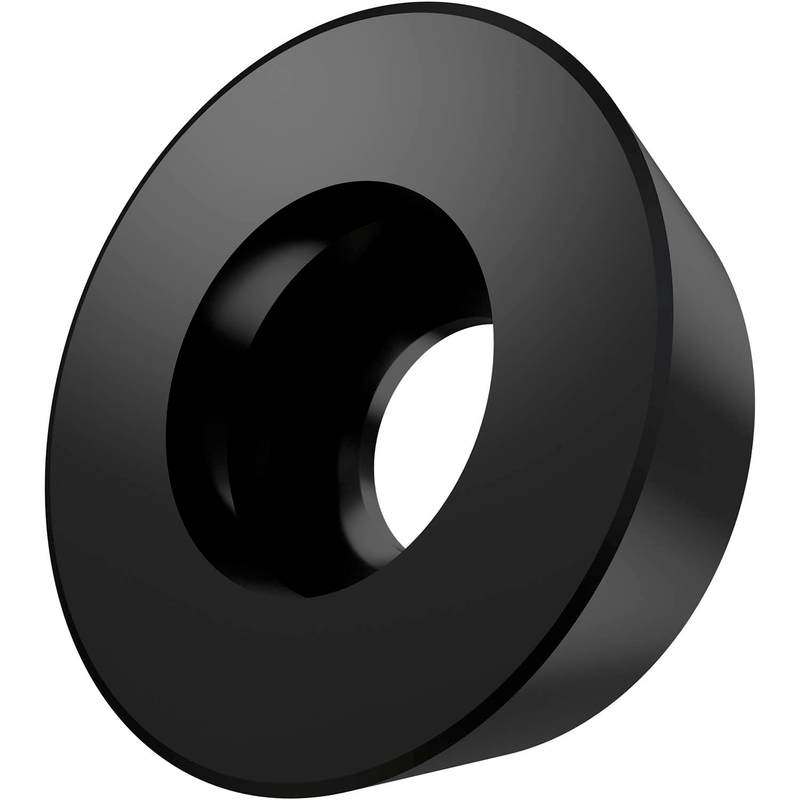

Plaquette de fraisage simple face RDHX 12T3, ronde pour une profondeur de coupe maximale de 3 mm, avec rayon de coin ", une précision de positionnement selon la classe de tolérance ISO H avec des arêtes de coupe à facettes, M8345 WC-Co à revêtement PVD pour l'usinage avec les fraises à copier SRD12

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RDHX 12T3MOT:M8345
GradeM8345
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755966
Product FamilyRDHX 12
Insert Geometry
Insert DesignRDHX
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6755966
EAN3603602913326
File Type Download

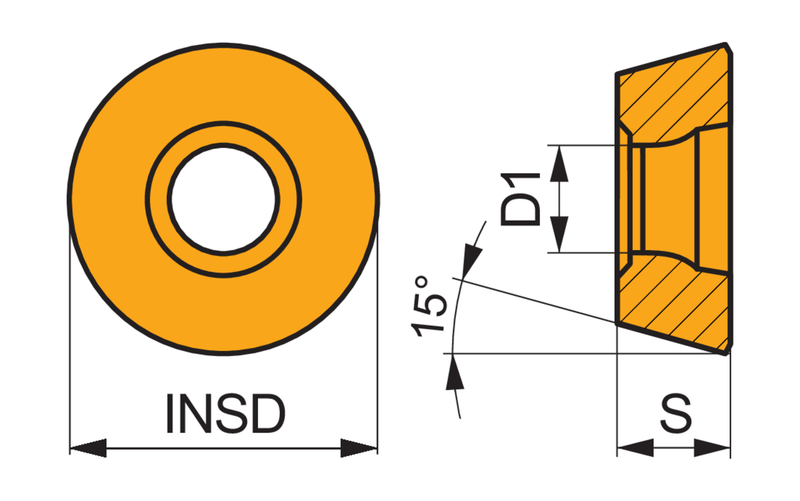

RDHX 12T3MOT:M8345 — Line Drawing PDF Download
