ZDCW 070304:M8345
ZDCW 070304:M8345

ZDCW 070304:M8345

UGC DOR6755968
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.44 CAD - $17.44 CAD
$17.44 CAD
$17.44 CAD - $17.44 CAD
$17.44 CAD

Vendu en lots de : 10

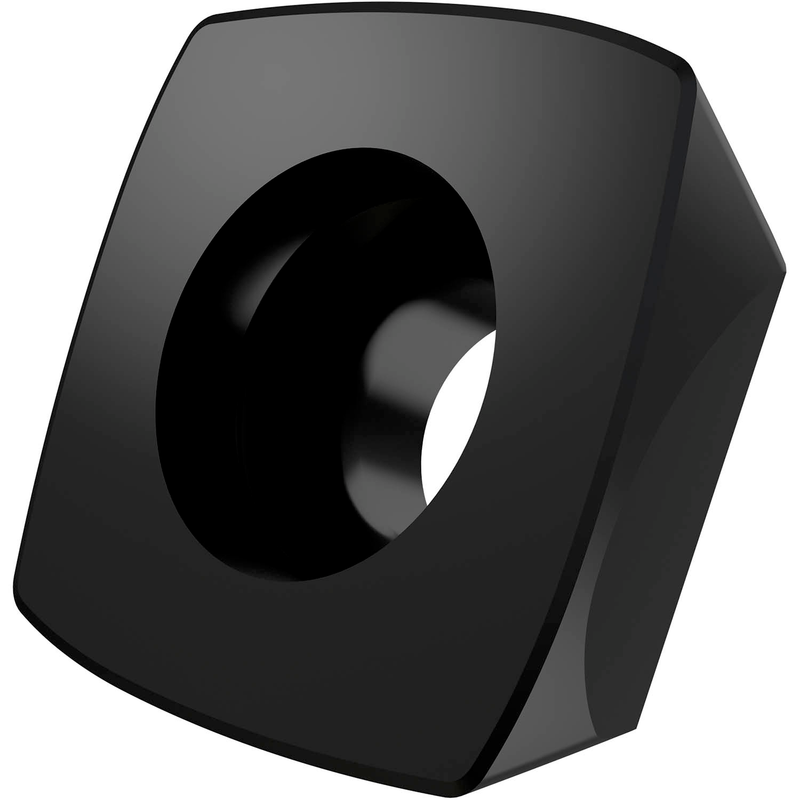

Plaquette de fraisage simple face ZDCW 0703 avec une surface de coupe plane, de forme spéciale pour une profondeur de coupe maximale de 0,0394 pouce, avec un rayon de coin de 0,0157 pouce, une précision de positionnement selon la classe de tolérance ISO-C, en carbure WC-Co revêtu PVD M8345 dans la gamme de classes ISO P30-P50 pour l'usinage de l'acier avec des fraises à avance rapide SZD07

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ZDCW 070304:M8345
GradeM8345
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755968
Product FamilyZDCW 07

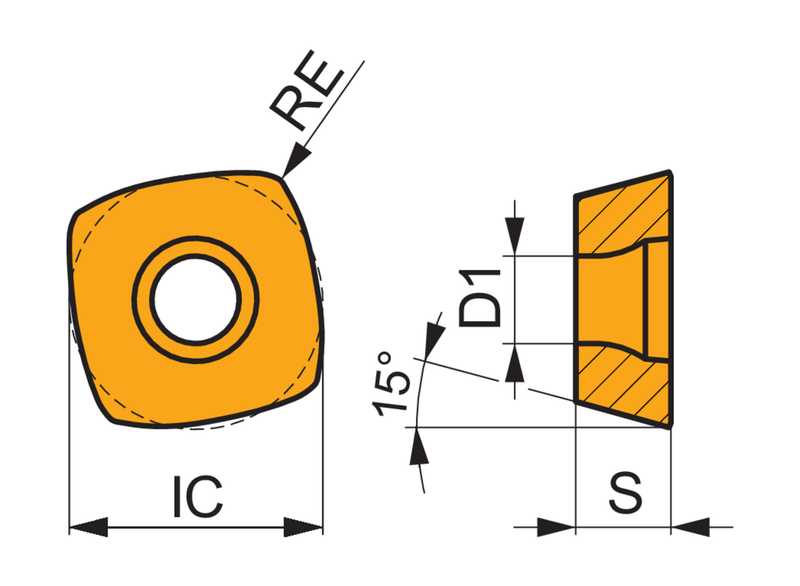

Insert Geometry
Insert DesignZDCW
Insert Shape Code (SC)X - Conception spéciale
Inscribed Circle Dia. — in (IC)0.268"
Inscribed Circle Dia. — mm (IC)6.8 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.039"
Depth of Cut Max — mm (APMX)1.0 mm
Tool Information
Reference Numbers
EDP Number6755968
EAN3603602913340
File Type Download
ZDCW 070304:M8345 — Line Drawing PDF Download
