ZDEW 120408:M8345
ZDEW 120408:M8345

ZDEW 120408:M8345

UGC DOR6755970
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.49 CAD - $23.49 CAD
$23.49 CAD
$23.49 CAD - $23.49 CAD
$23.49 CAD

Vendu en lots de : 10

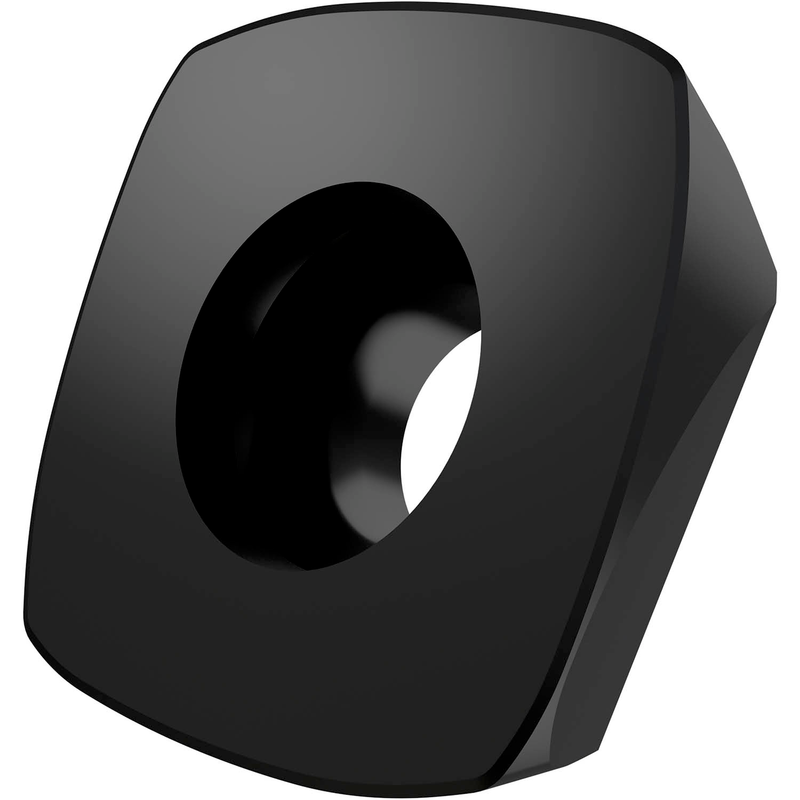

Plaquette de fraisage simple face ZDEW 1204 à surface de coupe plane, de forme spéciale et de conception à avance élevée pour une profondeur de coupe maximale de 1,6 mm, avec un rayon de coin de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO-E, en carbure WC-Co revêtu PVD M8345 dans la gamme de nuance ISO P30-P50 pour l'usinage de l'acier avec les fraises à avance rapide SZD12

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ZDEW 120408:M8345
GradeM8345
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6755970
Product FamilyZDEW 12

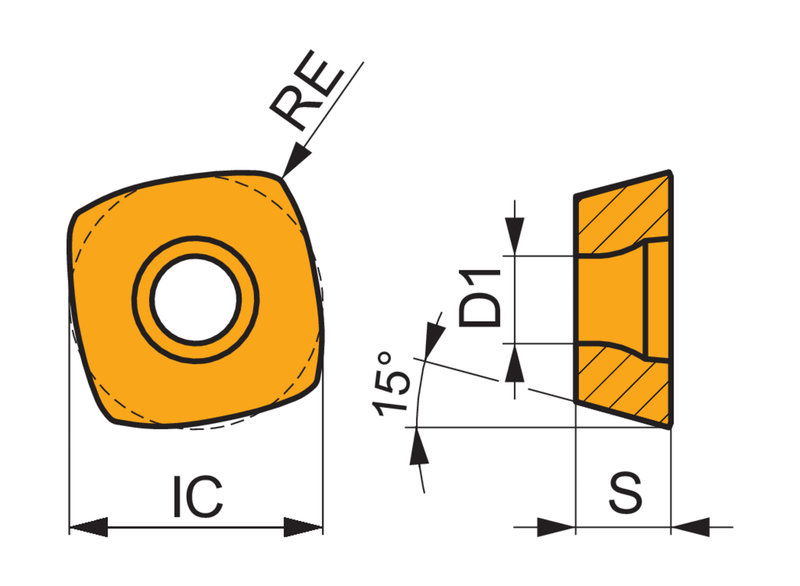

Insert Geometry
Insert DesignZDEW
Insert Shape Code (SC)X - Conception spéciale
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.063"
Depth of Cut Max — mm (APMX)1.6 mm
Tool Information
Reference Numbers
EDP Number6755970
EAN3603602913364
File Type Download
ZDEW 120408:M8345 — Line Drawing PDF Download
