RDHX 0702MOT:M8325
RDHX 0702MOT:M8325

RDHX 0702MOT:M8325

UGC DOR6756003
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.86 CAD - $15.86 CAD
$15.86 CAD
$15.86 CAD - $15.86 CAD
$15.86 CAD

Vendu en lots de : 10

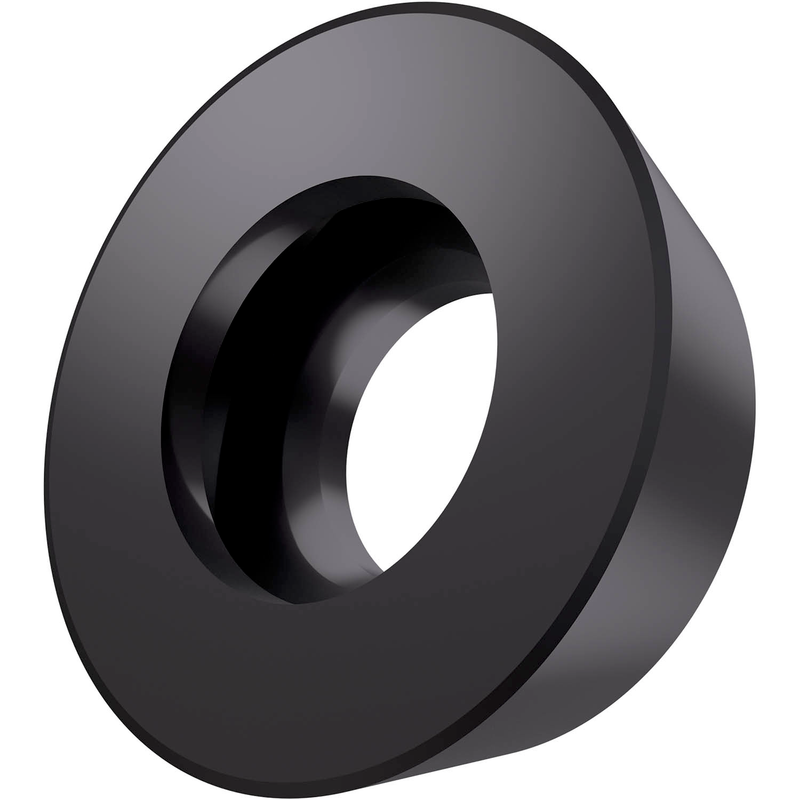

Plaquette de fraisage double face RDHX 0702, ronde pour une profondeur de coupe maximale de 2 mm, avec rayon de coin, une précision de positionnement selon la classe de tolérance ISO-H avec arêtes de coupe avec facette, carbure WC-(Ti, Ta, Nb)C-Co revêtu PVD M8325 pour l'usinage avec des fraises à copier SRD07

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RDHX 0702MOT:M8325
GradeM8325
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6756003
Product FamilyRDHX 07
Insert Geometry
Insert DesignRDHX
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number6756003
EAN3603602913692
File Type Download

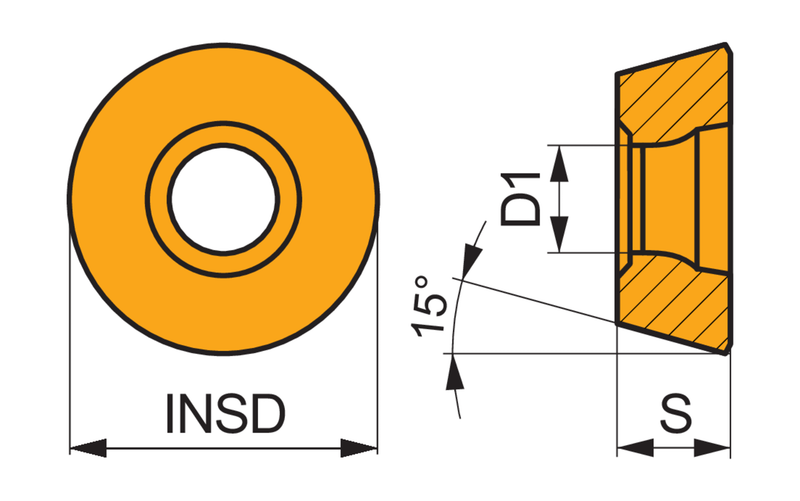

RDHX 0702MOT:M8325 — Line Drawing PDF Download
