RDHX 1604MOT:M8325
RDHX 1604MOT:M8325

RDHX 1604MOT:M8325

UGC DOR6756008
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.94 CAD - $24.94 CAD
$24.94 CAD
$24.94 CAD - $24.94 CAD
$24.94 CAD

Vendu en lots de : 10

Plaquette de fraisage simple face RDHX 1604, ronde pour une profondeur de coupe maximale de 4 mm (0,1575"), avec rayon d'angle ", une précision de positionnement selon la classe de tolérance ISO-H avec arêtes de coupe à facettes, carbure WC-(Ti, Ta, Nb)C-Co revêtu PVD M8325 pour l'usinage avec les fraises à surfacer à copier SRD16

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RDHX 1604MOT:M8325
GradeM8325
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6756008
Product FamilyRDHX 16
Insert Geometry
Insert DesignCRDH
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6756008
EAN3603602913746
File Type Download

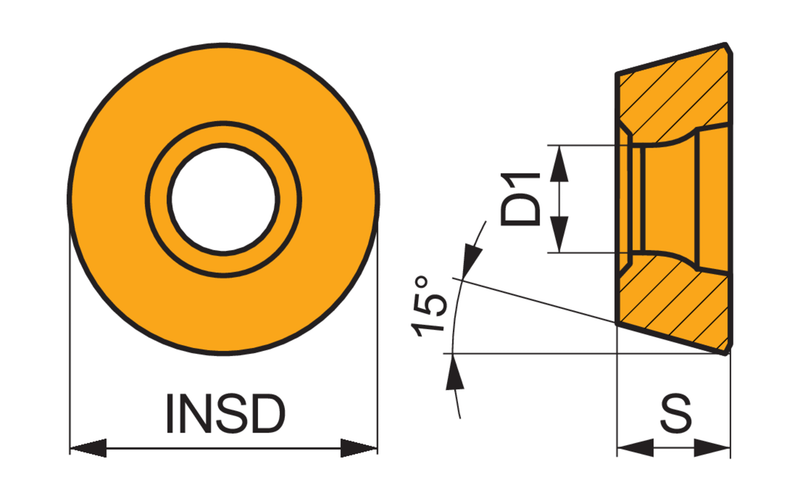

RDHX 1604MOT:M8325 — Line Drawing PDF Download
