RDHX 2006MOT:M8325
RDHX 2006MOT:M8325

RDHX 2006MOT:M8325

UGC DOR6756009
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.61 CAD - $32.61 CAD
$32.61 CAD
$32.61 CAD - $32.61 CAD
$32.61 CAD

Vendu en lots de : 10

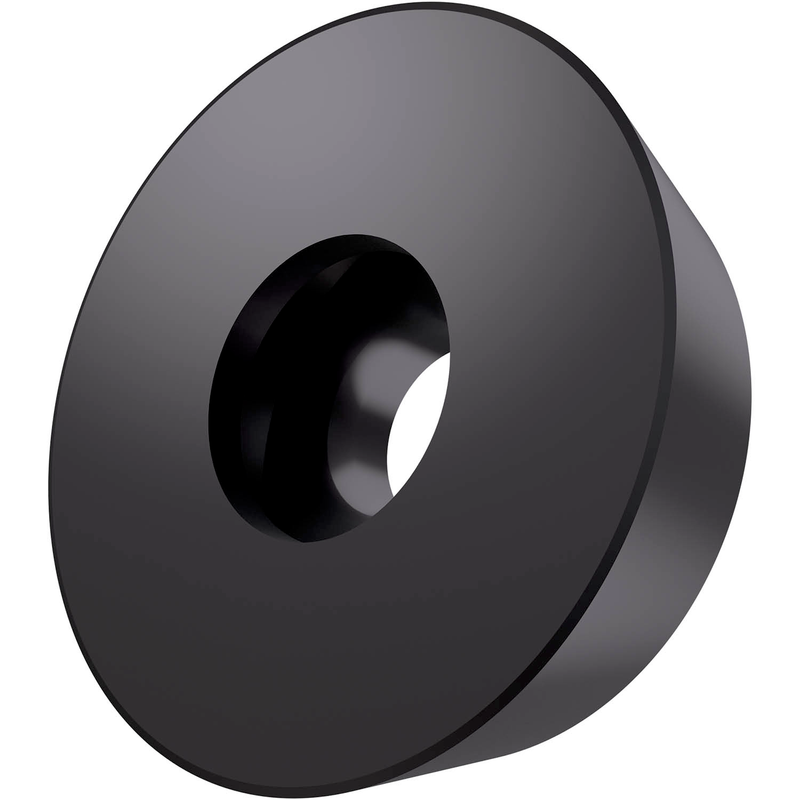

Plaquette de fraisage simple face RDHX 2006, ronde, pour une profondeur de coupe maximale de 0,1969", avec rayon de coin ", une précision d'indexation selon la classe de tolérance ISO H avec arêtes de coupe avec facette, carbure WC-(Ti, Ta, Nb)C-Co avec revêtement PVD M8325

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RDHX 2006MOT:M8325
GradeM8325
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6756009
Product FamilyRDHX 20
Insert Geometry
Insert DesignDRHX
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number6756009
EAN3603602913753
File Type Download

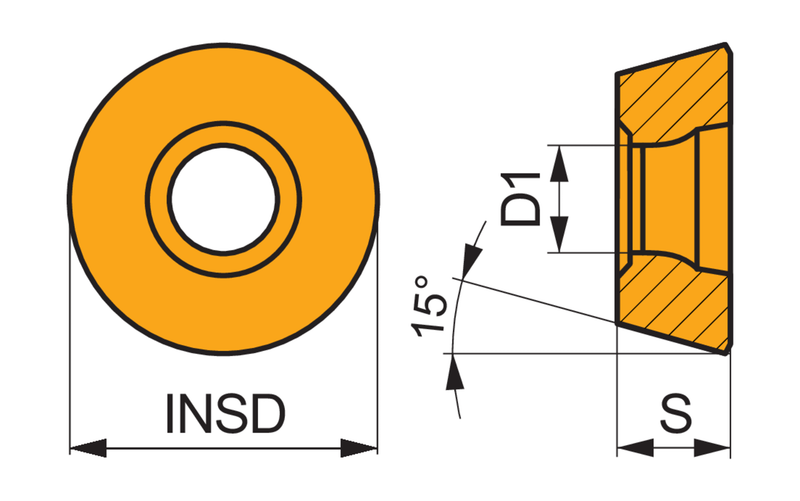

RDHX 2006MOT:M8325 — Line Drawing PDF Download
