XDHW 070210SN:M8325
XDHW 070210SN:M8325

XDHW 070210SN:M8325

UGC DOR6756012
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.14 CAD - $17.14 CAD
$17.14 CAD
$17.14 CAD - $17.14 CAD
$17.14 CAD

Vendu en lots de : 10

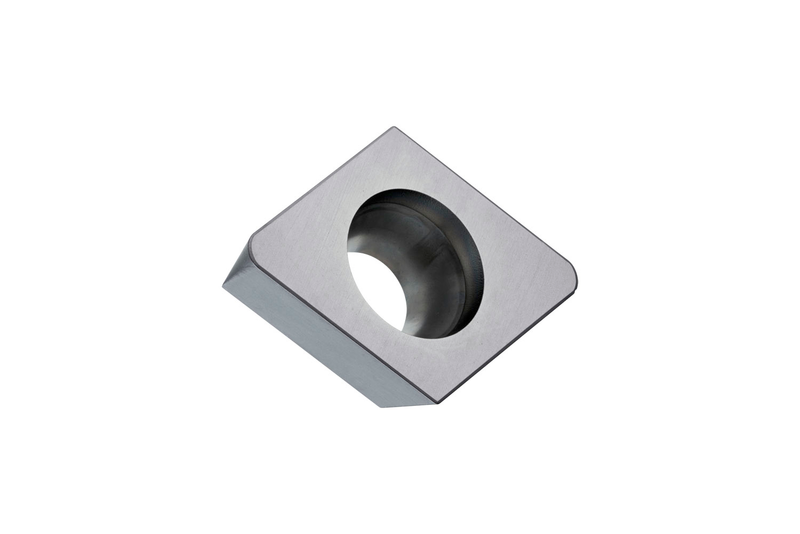

Plaquette de fraisage simple face XDHW 0702 avec une surface de coupe plane, rhomboïde 70° pour une profondeur de coupe maximale de 1,0 mm, avec un rayon de coin de 1,0 mm, une précision de positionnement selon la classe de tolérance ISO-H avec des arêtes de coupe arrondies et un chanfrein, carbure WC-(Ti, Ta, Nb)C-Co revêtu PVD M8325

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)XDHW 070210SN:M8325
GradeM8325
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6756012
Product FamilyXDHW

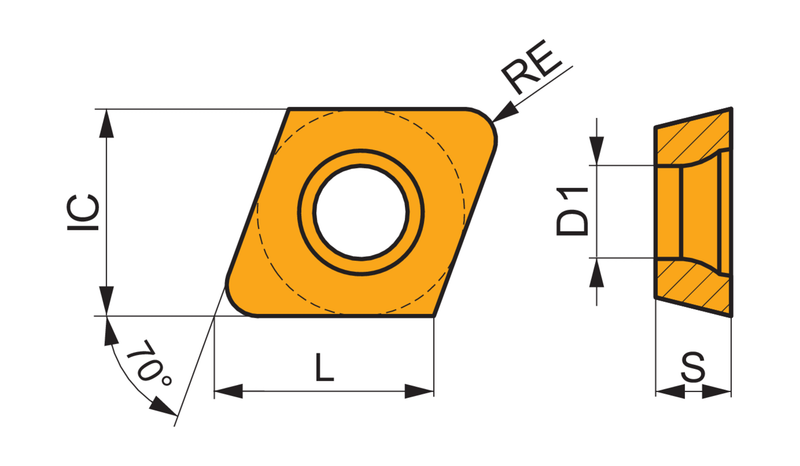

Insert Geometry
Insert DesignXDHW
Insert Shape Code (SC)X - Conception spéciale
Inscribed Circle Dia. — in (IC)0.256"
Inscribed Circle Dia. — mm (IC)6.5 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.039"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.039"
Depth of Cut Max — mm (APMX)1.0 mm
Tool Information
Reference Numbers
EDP Number6756012
EAN3603602913784
File Type Download
XDHW 070210SN:M8325 — Line Drawing PDF Download
