ZDCW 070304:M8325
ZDCW 070304:M8325

ZDCW 070304:M8325

UGC DOR6756014
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.44 CAD - $17.44 CAD
$17.44 CAD
$17.44 CAD - $17.44 CAD
$17.44 CAD

Vendu en lots de : 10

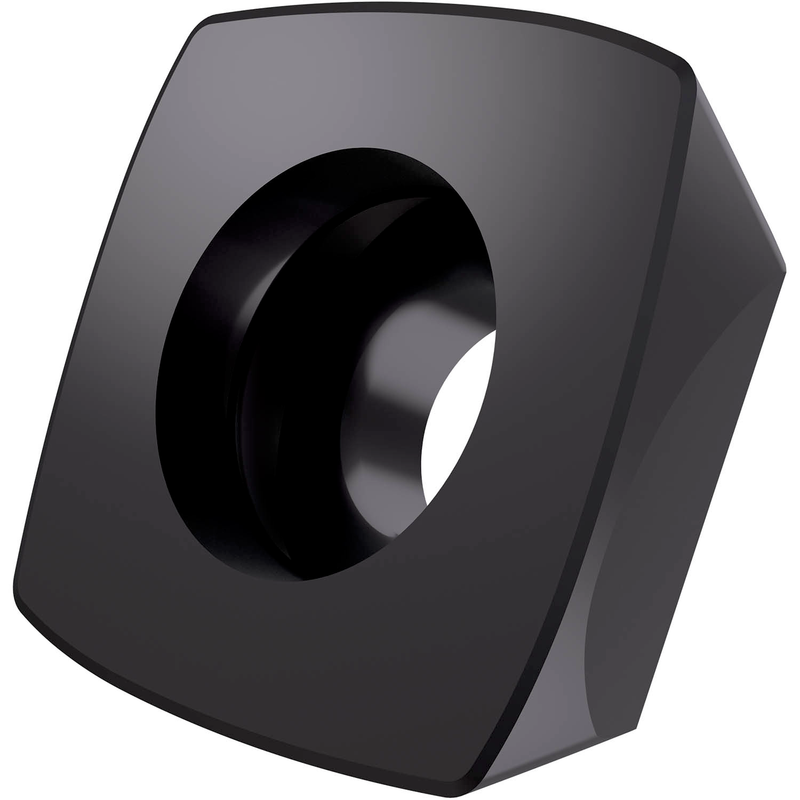

Plaquette de fraisage simple face ZDCW 0703 avec une surface de coupe plane, forme spéciale pour une profondeur de coupe maximale de 1 mm, avec un rayon de pointe de 0,4 mm, une précision de positionnement selon la classe de tolérance ISO-C, en carbure WC-(Ti, Ta, Nb)C-Co revêtu PVD M8325 de nuance ISO P20-P40 pour l'usinage de l'acier avec les fraises à avancement rapide SZD07

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ZDCW 070304:M8325
GradeM8325
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6756014
Product FamilyZDCW 07

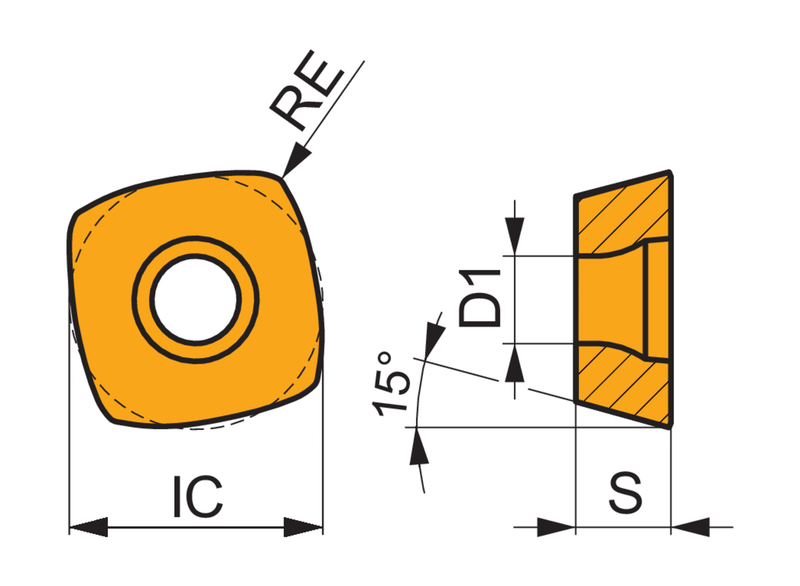

Insert Geometry
Insert DesignZDCW
Insert Shape Code (SC)X - Design spécial
Inscribed Circle Dia. — in (IC)0.268"
Inscribed Circle Dia. — mm (IC)6.8 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.039"
Depth of Cut Max — mm (APMX)1.0 mm
Tool Information
Reference Numbers
EDP Number6756014
EAN3603602913807
File Type Download
ZDCW 070304:M8325 — Line Drawing PDF Download
