ZDCW 09T304:M8325
ZDCW 09T304:M8325

ZDCW 09T304:M8325

UGC DOR6756015
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.94 CAD - $18.94 CAD
$18.94 CAD
$18.94 CAD - $18.94 CAD
$18.94 CAD

Vendu en lots de : 10

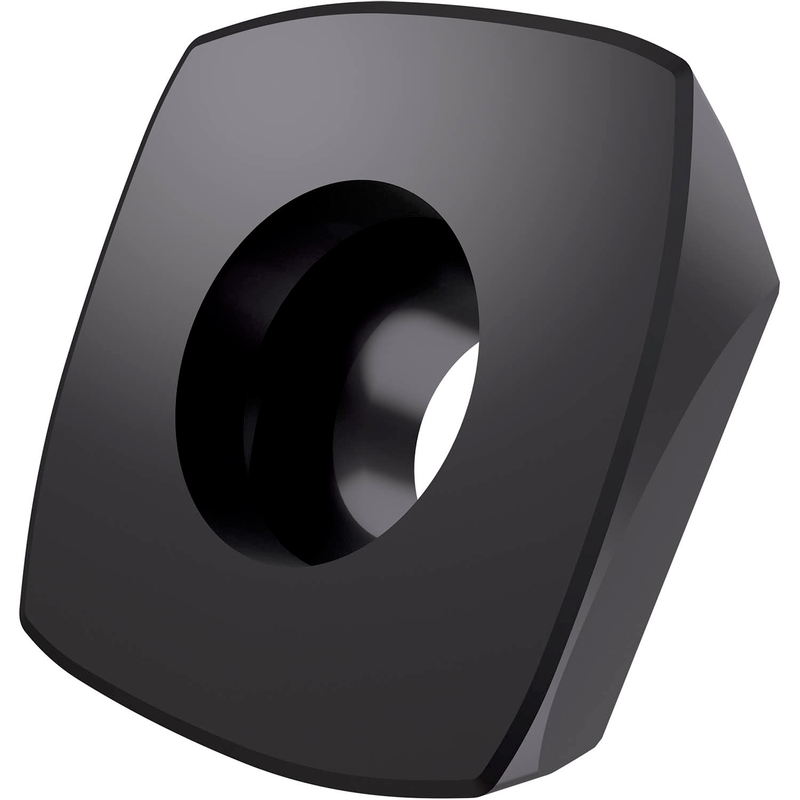

Plaquette de fraisage simple face ZDCW 09T3 avec une face de coupe plane, une forme spéciale et une conception à avance rapide pour une profondeur de coupe maximale de 1 mm (0,0394"), avec un rayon de coin de 0,4 mm (0,0157"), une précision de positionnement selon la classe de tolérance ISO C, un carbure WC-(Ti, Ta, Nb)C-Co revêtu PVD M8325 de nuance ISO P20-P40 pour l'usinage de l'acier avec les fraises à avance rapide SZD09

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ZDCW 09T304:M8325
GradeM8325
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6756015
Product FamilyZDCW 09

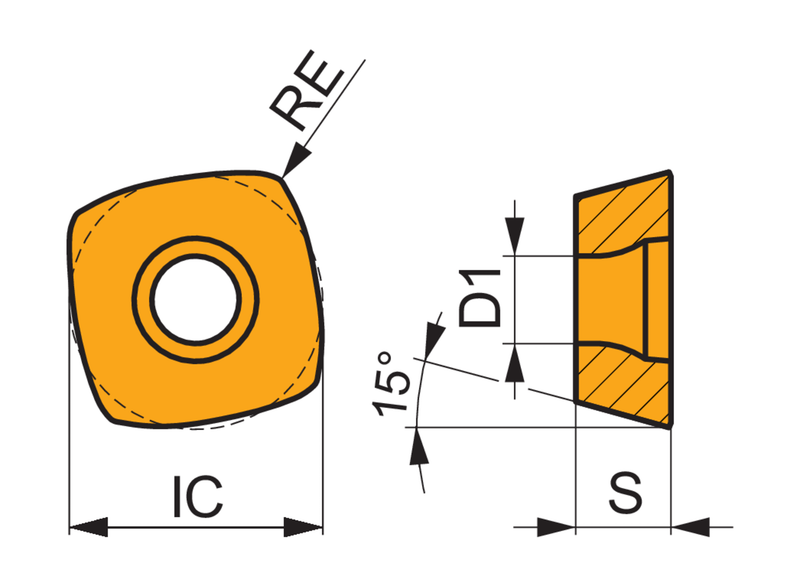

Insert Geometry
Insert DesignZDCW
Insert Shape Code (SC)X - Conception spéciale
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.039"
Depth of Cut Max — mm (APMX)1.0 mm
Tool Information
Reference Numbers
EDP Number6756015
EAN3603602913814
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage principal
H — Hardened Materials Usage principal
File Type Download
ZDCW 09T304:M8325 — Line Drawing PDF Download
