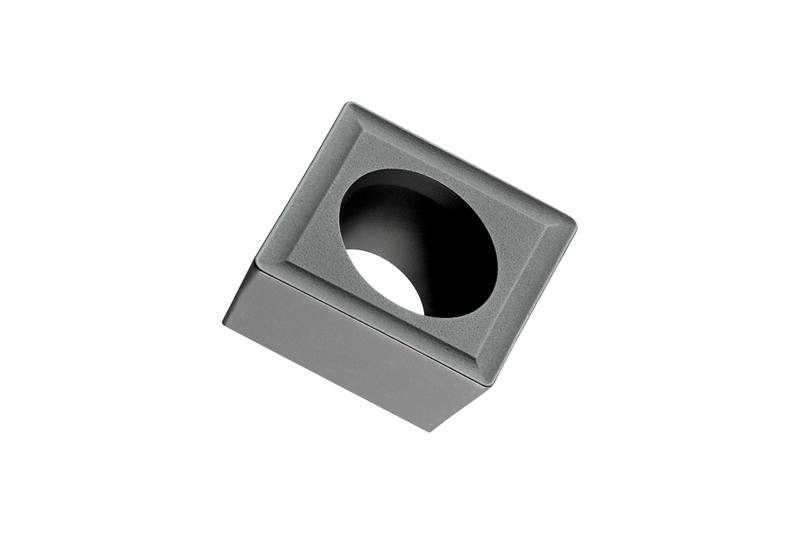

CCMT 21.51-RF:T7335
CCMT 21.51-RF:T7335

CCMT 21.51-RF:T7335

UGC DOR6756023
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.33 CAD - $10.33 CAD
$10.33 CAD
$10.33 CAD - $10.33 CAD
$10.33 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit 1/4", épaisseur 3/32", rayon de pointe 1/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux RF, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage fin à lourd

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 21.51-RF:T7335
Product Name (ISO)CCMT 060204E-RF:T7335
GradeT7335
Chipbreaker (CBMD)RF
Product Number6756023
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle de 80° inclus, rhomboédrique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6756023
EAN3603602913890
Material Group Suitability
P — Steel and Cast Steel Usage possible
M — Stainless Steel Utilisation possible
File Type Download
CCMT 21.51-RF:T7335 — Line Drawing PDF Download
