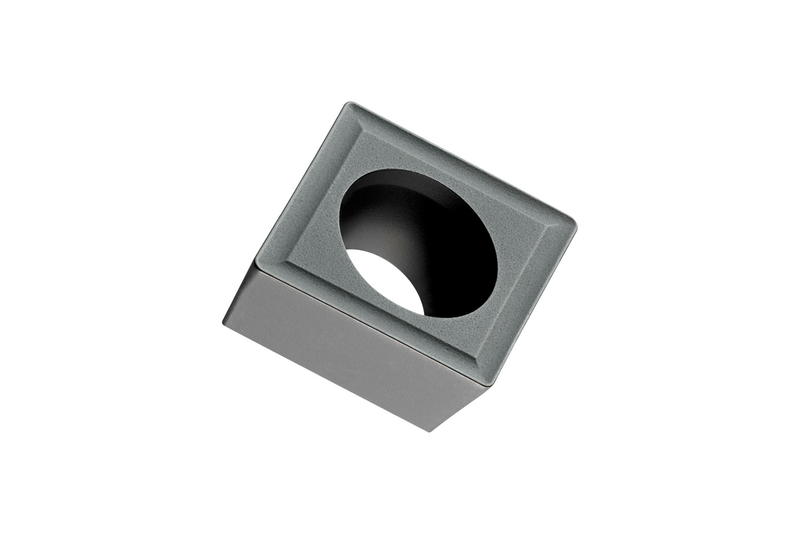

CCMT 32.51-RF:T7335
CCMT 32.51-RF:T7335

CCMT 32.51-RF:T7335

UGC DOR6756026
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.04 CAD - $14.04 CAD
$14.04 CAD
$14.04 CAD - $14.04 CAD
$14.04 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille de 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 1/64" et précision d'indexation selon la classe de tolérance ISO M, brise-copeaux RF, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage léger à lourd

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 32.51-RF:T7335
Product Name (ISO)CCMT 09T304E-RF:T7335
GradeT7335
Chipbreaker (CBMD)RF
Product Number6756026
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle de 80° inclus rhomboédrique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6756026
EAN3603602913920
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Utilisation possible
File Type Download
CCMT 32.51-RF:T7335 — Line Drawing PDF Download
