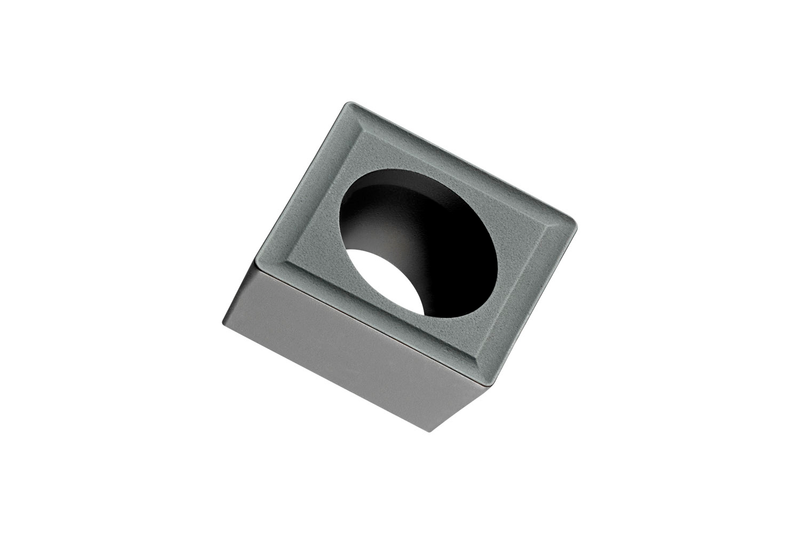

CCMT 432-RF:T7335
CCMT 432-RF:T7335

CCMT 432-RF:T7335

UGC DOR6756031
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.54 CAD - $16.54 CAD
$16.54 CAD
$16.54 CAD - $16.54 CAD
$16.54 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit 1/2", épaisseur 3/16", rayon de bec 1/32" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux RF, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage fin à lourd

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 432-RF:T7335
Product Name (ISO)CCMT 120408E-RF:T7335
GradeT7335
Chipbreaker (CBMD)RF
Product Number6756031
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle d'inclinaison de 80° pour le losange
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.177"
Depth of Cut Max — mm (APMX)4.5 mm
Tool Information
Reference Numbers
EDP Number6756031
EAN3603602913975
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Utilisation possible
File Type Download
CCMT 432-RF:T7335 — Line Drawing PDF Download
