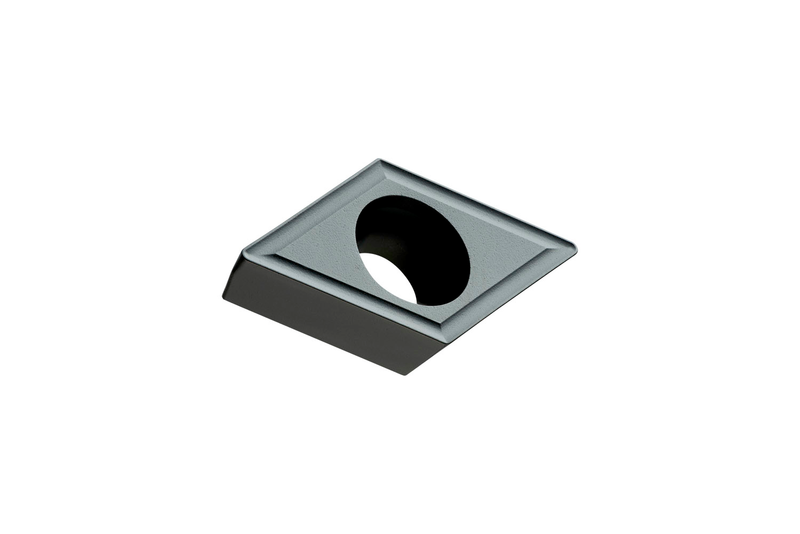

DCMT 32.51-RF:T7335
DCMT 32.51-RF:T7335

DCMT 32.51-RF:T7335

UGC DOR6756034
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.54 CAD - $15.54 CAD
$15.54 CAD
$15.54 CAD - $15.54 CAD
$15.54 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 3/8", 5/32" d'épaisseur, rayon de bec de 1/64" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux RF, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage fin à l'usinage lourd

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 32.51-RF:T7335
Product Name (ISO)DCMT 11T304E-RF:T7335
GradeT7335
Chipbreaker (CBMD)RF
Product Number6756034
Product FamilyGDMC
Insert Geometry
Insert DesignDCMT
Insert Shape Code (SC)D - angle inclus rhombique 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Reference Numbers
EDP Number6756034
EAN3603602914002
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Utilisation possible
File Type Download
DCMT 32.51-RF:T7335 — Line Drawing PDF Download
