RCMT 1606MOSN-R:M8345
RCMT 1606MOSN-R:M8345

RCMT 1606MOSN-R:M8345

UGC DOR6756057
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.73 CAD - $21.73 CAD
$21.73 CAD
$21.73 CAD - $21.73 CAD
$21.73 CAD

Vendu en lots de : 10

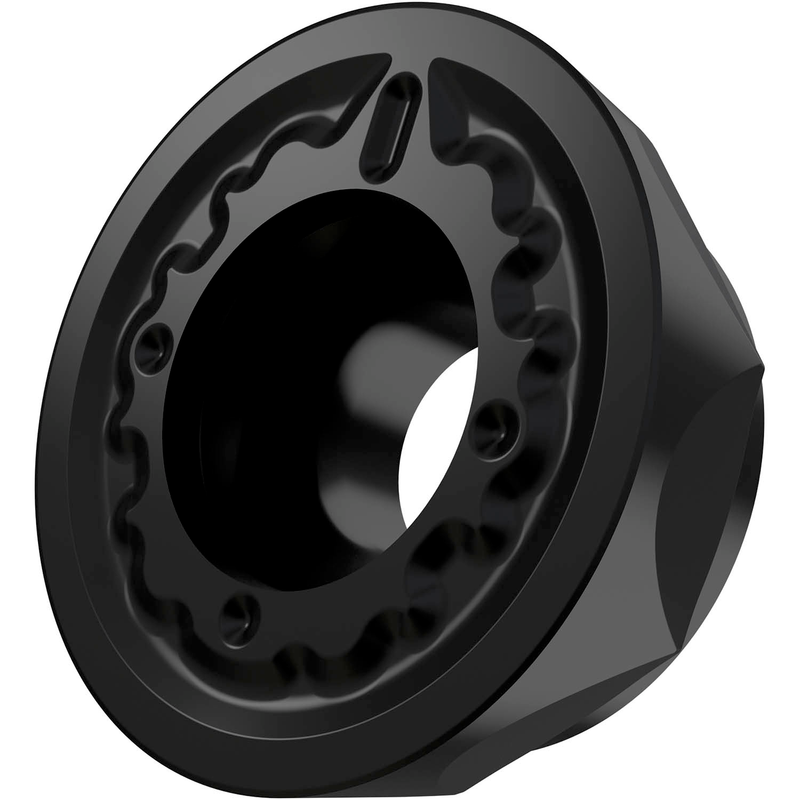

Plaquette de fraisage simple face RCMT 1606 avec brise-copeaux, ronde pour une profondeur de coupe maximale de 8 mm (0,315"), avec un rayon de coin ", une précision d'indexation selon la classe de tolérance ISO M et une géométrie R avec arêtes de coupe et facettes arrondies, en carbure WC-Co revêtu PVD M8345, dans la gamme de nuances ISO P30-P50 pour l'usinage de l'acier avec des fraises à copier SRC16

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 1606MOSN-R:M8345
GradeM8345
Chipbreaker (CBMD)R
Product Number6756057
Product FamilyRCMT 16
Insert Geometry
Insert DesignMRTC
Insert Shape Code (SC)R - tour
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6756057
EAN3603602914231
File Type Download

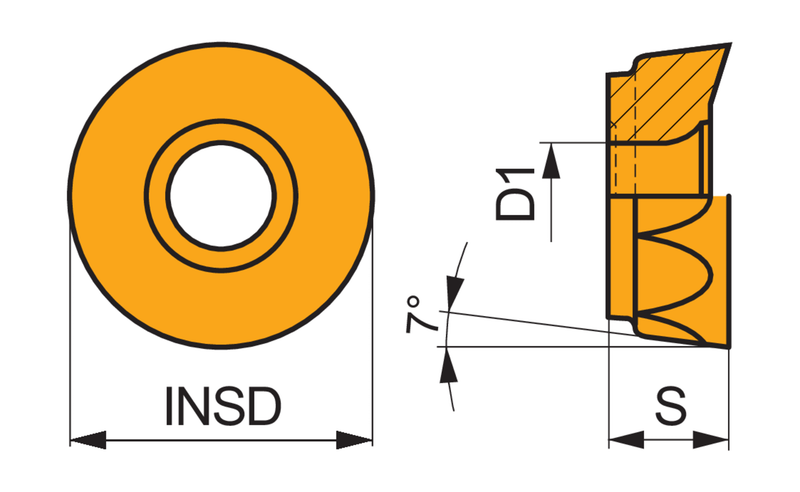

RCMT 1606MOSN-R:M8345 — Line Drawing PDF Download
