RCMT 2006MOSN-M:M9340
RCMT 2006MOSN-M:M9340

RCMT 2006MOSN-M:M9340

UGC DOR6756063
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.80 CAD - $28.80 CAD
$28.80 CAD
$28.80 CAD - $28.80 CAD
$28.80 CAD

Vendu en lots de : 10

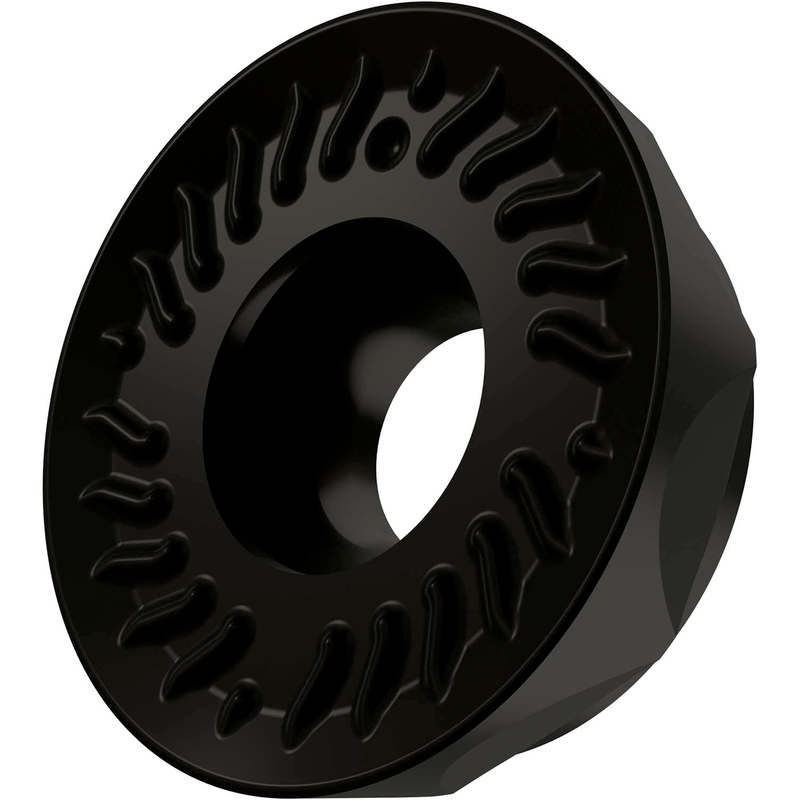

Plaquette de fraisage simple face RCMT 2006 avec brise-copeaux, ronde pour une profondeur de coupe maximale de 10 mm, avec rayon de coin ", une précision d'indexation selon la classe de tolérance ISO M et une géométrie M avec arêtes de coupe arrondies et facette, carbure WC-Co revêtu M9340 MT-CVD dans la gamme ISO M30-M40 pour l'usinage de l'acier inoxydable avec les fraises à copier SRC20

For more information about this product, click here

Identification
Ordering Code (ANSI)RCMT 2006MOSN-M :M9340
Product Name (ISO)RCMT 2006MOSN-M:M9340
GradeM9340
Chipbreaker (CBMD)M
Product Number6756063
Product FamilyRCMT 20
Insert Geometry
Insert DesignCRMT
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number6756063
EAN3603602914293
File Type Download

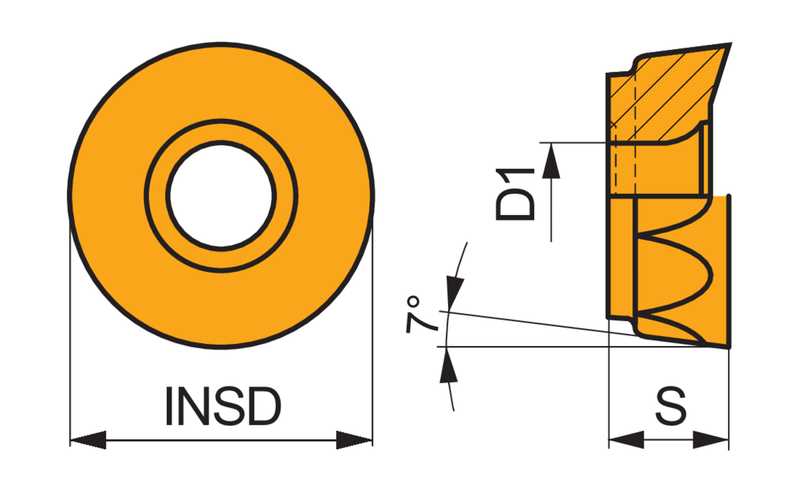

RCMT 2006MOSN-M:M9340 — Line Drawing PDF Download
