SDGX 120508EN-FM:M8345
SDGX 120508EN-FM:M8345

SDGX 120508EN-FM:M8345

UGC DOR6756068
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.86 CAD - $27.86 CAD
$27.86 CAD
$27.86 CAD - $27.86 CAD
$27.86 CAD

Vendu en lots de : 10

Plaquette de fraisage simple face SDGX 1205, carrée pour une profondeur de coupe maximale de 12 mm, avec rayon de coin de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO-G et une géométrie FM avec arêtes de coupe arrondies, en carbure WC-Co revêtu PVD M8345 dans la gamme de nuances ISO P30-P50 pour l'usinage de l'acier avec les fraises à épaulement avec queue rallongée J(T)-CSD12X

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDGX 120508EN-FM:M8345
GradeM8345
Chipbreaker (CBMD)FM
Product Number6756068
Product FamilySDGX 12

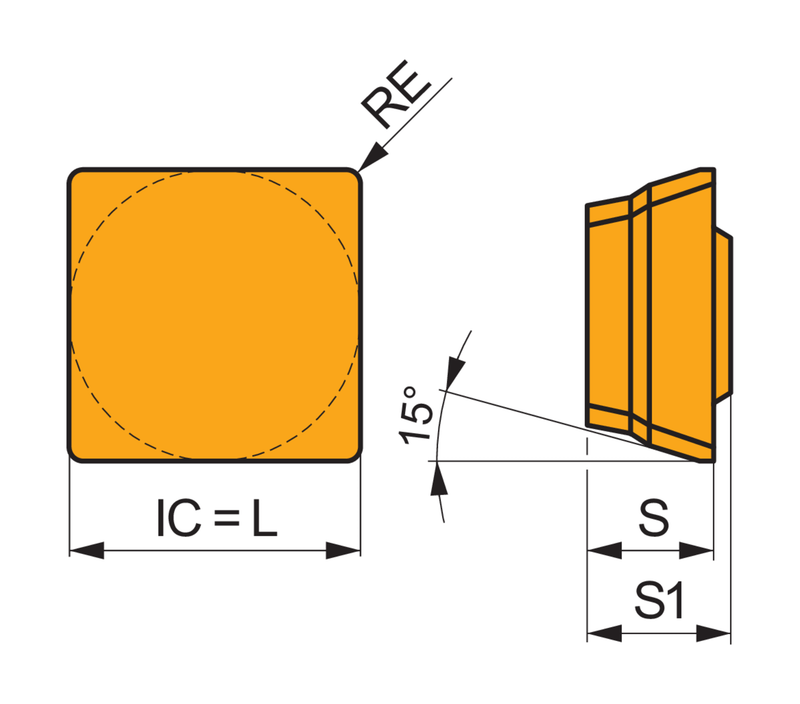

Insert Geometry
Insert DesignSDGX
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number6756068
EAN3603602914347
File Type Download
SDGX 120508EN-FM:M8345 — Line Drawing PDF Download
