PDMW 090530SR:M8345
PDMW 090530SR:M8345

PDMW 090530SR:M8345

UGC DOR6756074
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.76 CAD - $22.76 CAD
$22.76 CAD
$22.76 CAD - $22.76 CAD
$22.76 CAD

Vendu en lots de : 10

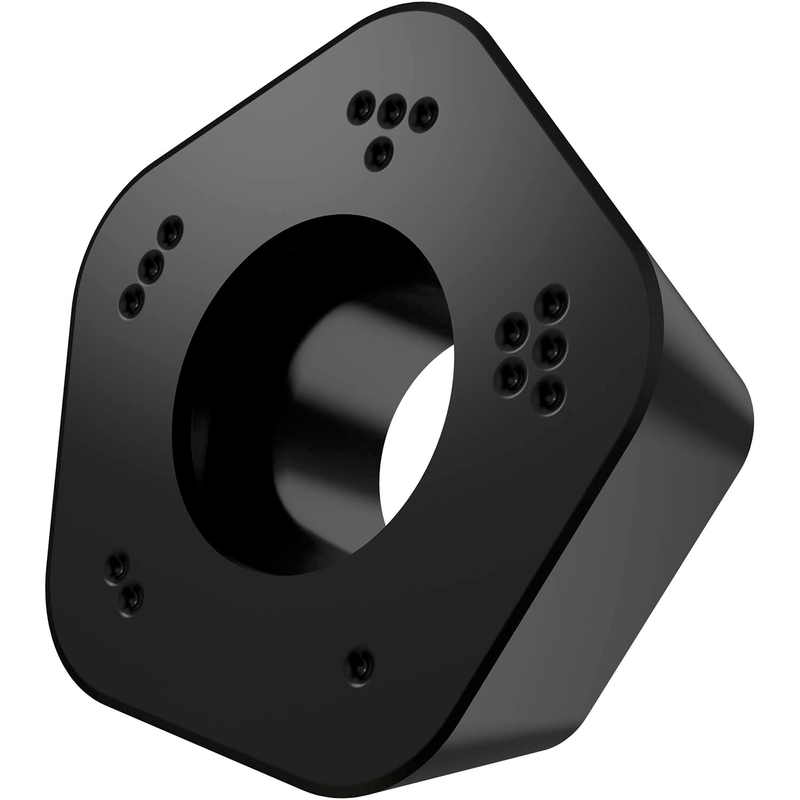

Plaquette de fraisage simple face PDMW 0905 avec une surface de coupe plate, pentagonale pour une profondeur de coupe maximale de 2 mm, avec un rayon de coin de 3 mm, une précision d'indexage selon la classe de tolérance ISO-M avec des arêtes de coupe et un chanfrein arrondis, en carbure WC-Co revêtu PVD M8345 pour l'usinage avec des fraises à avance rapide SPD09

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PDMW 090530SR:M8345
GradeM8345
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6756074
Product FamilyPDMW 09

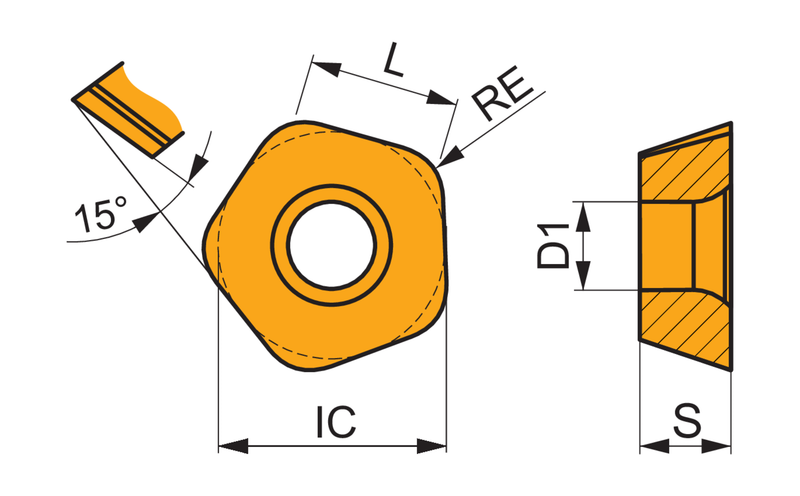

Insert Geometry
Insert DesignPGDM
Insert Shape Code (SC)P - pentagonale
Inscribed Circle Dia. — in (IC)0.531"
Inscribed Circle Dia. — mm (IC)13.5 mm
Insert Thickness — in (S)0.215"
Insert Thickness — mm (S)5.47 mm
Corner Radius — in (RE)0.118"
Corner Radius — mm (RE)3 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number6756074
EAN3603602914408
File Type Download
PDMW 090530SR:M8345 — Line Drawing PDF Download
