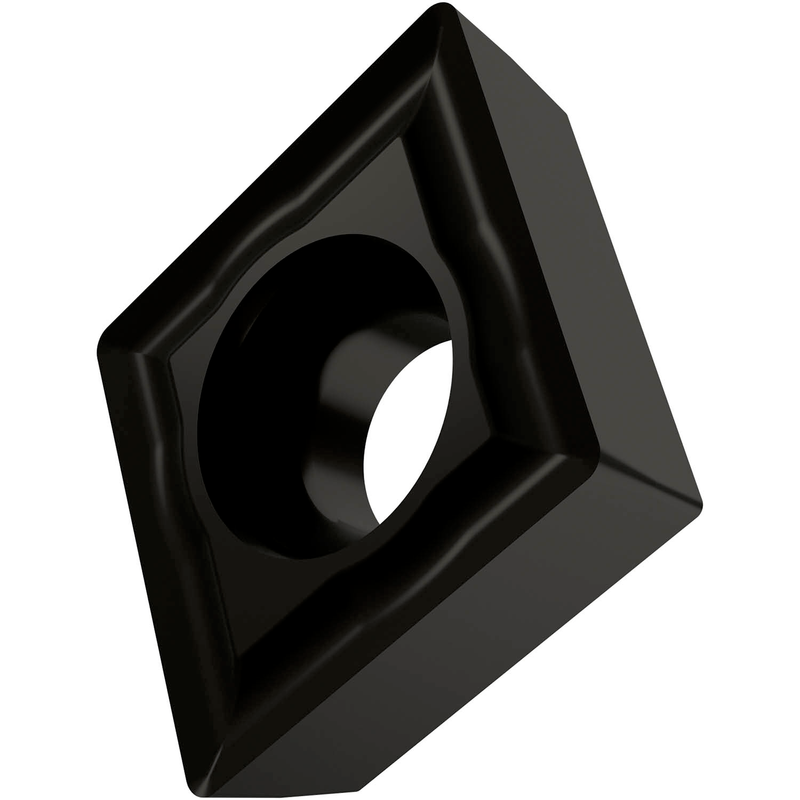

CCMT 2.521-NF2:T7335
CCMT 2.521-NF2:T7335

CCMT 2.521-NF2:T7335

UGC DOR6756082
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.64 CAD - $10.64 CAD
$10.64 CAD
$10.64 CAD - $10.64 CAD
$10.64 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïdale 80° avec dépouille 7°, diamètre du cercle inscrit de 5/16", épaisseur de 1/8", rayon de bec de 1/64" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux NF2, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO M20 - M40 et S15 - S25, pour l'usinage fin à moyen des aciers inoxydables et superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 2.521-NF2:T7335
Product Name (ISO)CCMT 080304E-NF2:T7335
GradeT7335
Chipbreaker (CBMD)NF2
Product Number6756082
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle compris rhomboédrique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.142"
Depth of Cut Max — mm (APMX)3.6 mm
Tool Information
Reference Numbers
EDP Number6756082
EAN3603602914484
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download
CCMT 2.521-NF2:T7335 — Line Drawing PDF Download
