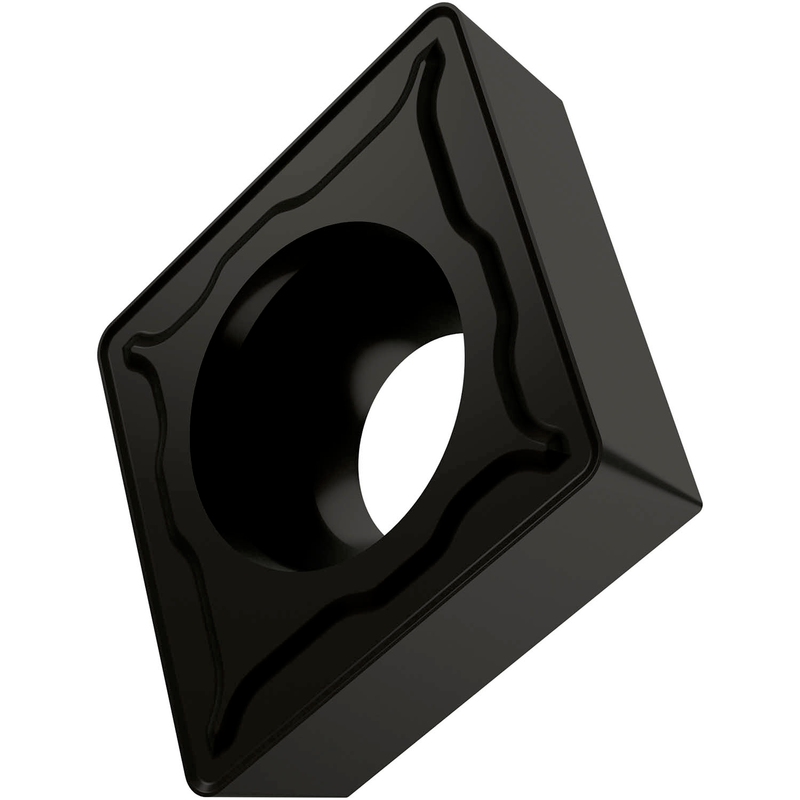

CCMT 2.522-FM2:T9335
CCMT 2.522-FM2:T9335

CCMT 2.522-FM2:T9335

UGC DOR6756084
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.64 CAD - $10.64 CAD
$10.64 CAD
$10.64 CAD - $10.64 CAD
$10.64 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit 5/16", épaisseur 1/8", rayon de bec 1/32" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM2, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P20-P45, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 2.522-FM2:T9335
Product Name (ISO)CCMT 080308E-FM2:T9335
GradeT9335
Chipbreaker (CBMD)FM2
Product Number6756084
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number6756084
EAN3603602914507
File Type Download
CCMT 2.522-FM2:T9335 — Line Drawing PDF Download
