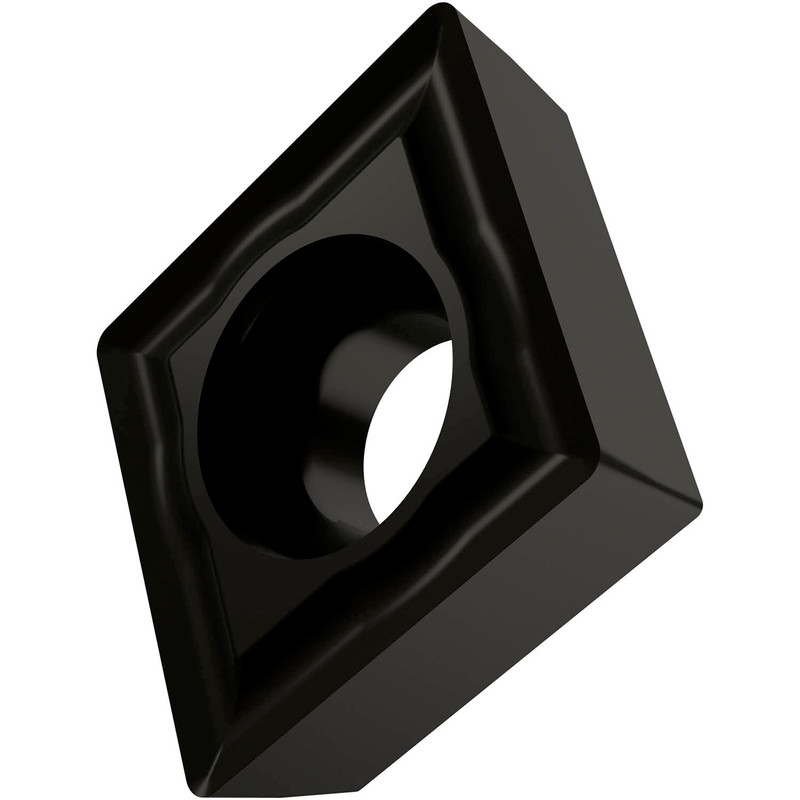

CCMT 2.522-NF2:T9325
CCMT 2.522-NF2:T9325

CCMT 2.522-NF2:T9325

UGC DOR6756086
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.64 CAD - $10.64 CAD
$10.64 CAD
$10.64 CAD - $10.64 CAD
$10.64 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 5/16", épaisseur de 1/8", rayon de bec de 1/32" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux NF2, en nuance T9325, un carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD dans la gamme ISO M10 - M30, pour l'usinage de finition à moyen des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 2.522-NF2:T9325
Product Name (ISO)CCMT 080308E-NF2:T9325
GradeT9325
Chipbreaker (CBMD)NF2
Product Number6756086
Product FamilyCCMG
Insert Geometry
Insert DesignCCMG
Insert Shape Code (SC)C - rhomboïdal 80° angle d'ouverture
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6756086
EAN3603602914521
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
CCMT 2.522-NF2:T9325 — Line Drawing PDF Download
