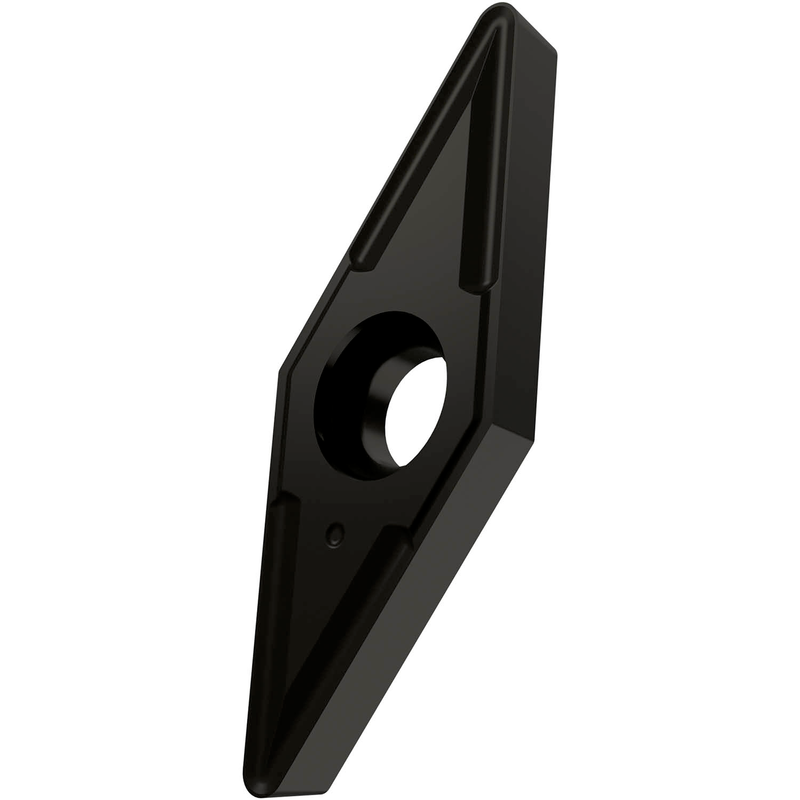

VCGT 2.521-NF2:T5315
VCGT 2.521-NF2:T5315

VCGT 2.521-NF2:T5315

UGC DOR6756097
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.61 CAD - $19.61 CAD
$19.61 CAD
$19.61 CAD - $19.61 CAD
$19.61 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde à 35° avec dépouille de 7°, diamètre du cercle inscrit de 5/16", épaisseur de 1/8", rayon de bec de 1/64" et précision d'indexage selon la classe de tolérance ISO G, brise-copeaux NF2, en nuance T5315, un carbure WC-Co revêtu MT-CVD, pour l'usinage fin à moyen

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.521-NF2:T5315
Product Name (ISO)VCGT 130304E-NF2:T5315
GradeT5315
Chipbreaker (CBMD)NF2
Product Number6756097
Product FamilyGTCA
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle interne rhomboïdal 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Reference Numbers
EDP Number6756097
EAN3603602914637
File Type Download
VCGT 2.521-NF2:T5315 — Line Drawing PDF Download
