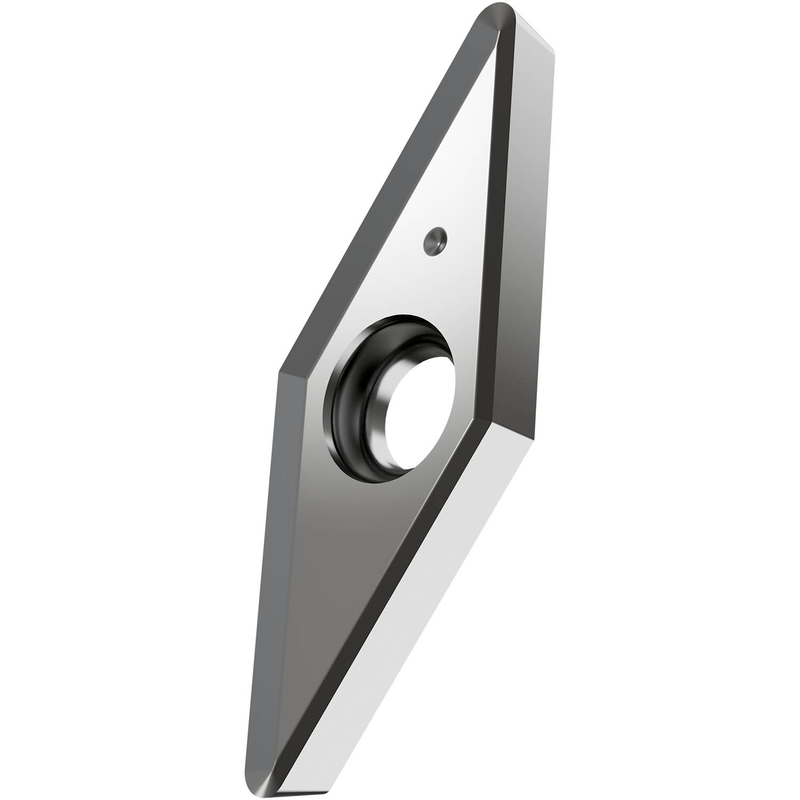

VCGT 2.522-SF2:HF7
VCGT 2.522-SF2:HF7

VCGT 2.522-SF2:HF7

UGC DOR6756100
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.61 CAD - $15.61 CAD
$15.61 CAD
$15.61 CAD - $15.61 CAD
$15.61 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec un angle de dépouille de 7°, diamètre du cercle inscrit de 5/16", 1/8" d'épaisseur, rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux SF2, en nuance HF7, un carbure WC-Co à grain fin non revêtu, pour l'usinage fin à moyen

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.522-SF2:HF7
Product Name (ISO)VCGT 130308E-SF2:HF7
GradeHF7
Chipbreaker (CBMD)SF2
Product Number6756100
Product FamilyVCMV
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - 35° d'angle rentrant
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number6756100
EAN3603602914668
File Type Download
VCGT 2.522-SF2:HF7 — Line Drawing PDF Download
