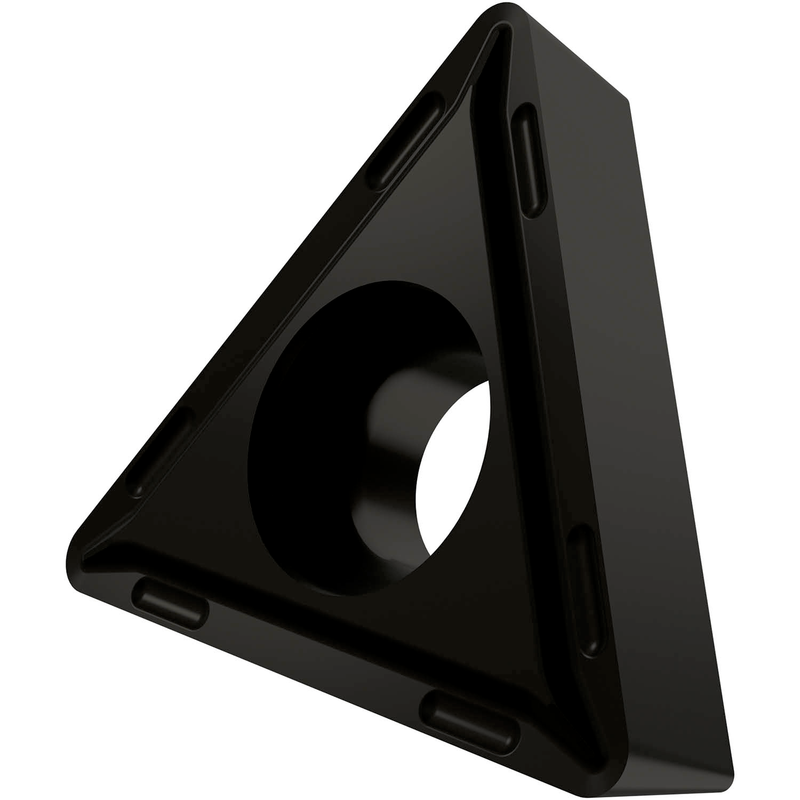

TCMT 1.21.21-FF2:T9325
TCMT 1.21.21-FF2:T9325

TCMT 1.21.21-FF2:T9325

UGC DOR6756101
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.07 CAD - $9.07 CAD
$9.07 CAD
$9.07 CAD - $9.07 CAD
$9.07 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 5/32", épaisseur de 5/64", rayon de bec de 1/64" et précision d'indexation selon la classe de tolérance ISO M, brise-copeaux FF2, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15-P35, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 1.21.21-FF2:T9325
Product Name (ISO)TCMT 06T104E-FF2:T9325
GradeT9325
Chipbreaker (CBMD)FF2
Product Number6756101
Product FamilyTCMT
Insert Geometry
Insert DesignTCMT
Insert Shape Code (SC)T - angle inclus triangulaire de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.156"
Inscribed Circle Dia. — mm (IC)3.97 mm
Insert Thickness — in (S)0.078"
Insert Thickness — mm (S)1.98 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number6756101
EAN3603602914675
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
TCMT 1.21.21-FF2:T9325 — Line Drawing PDF Download
