HNEF 0905DNFN-F:M5315
HNEF 0905DNFN-F:M5315

HNEF 0905DNFN-F:M5315

UGC DOR6756109
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$38.91 CAD - $38.91 CAD
$38.91 CAD
$38.91 CAD - $38.91 CAD
$38.91 CAD

Vendu en lots de : 10

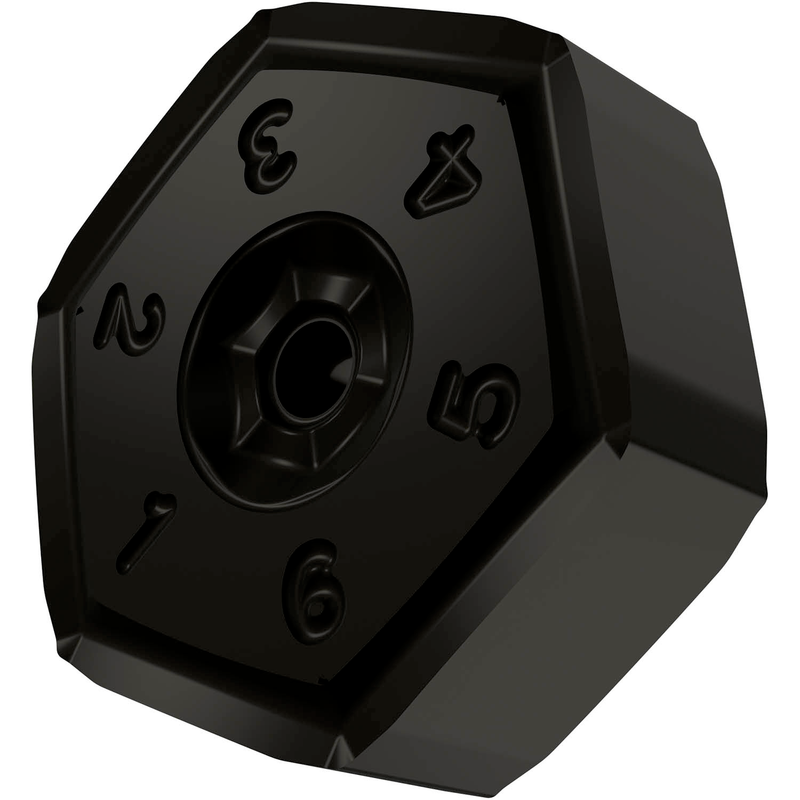

Plaquette de fraisage double face HNEF 0905DNF avec brise-copeaux, hexagonale pour une profondeur de coupe maximale de 3 mm, avec un rayon de coin de 0,4 mm, une précision de positionnement selon la classe de tolérance ISO-E et une géométrie F avec des arêtes de coupe vives, en carbure WC-Co revêtu MT-CVD M5315 dans la gamme de grades ISO K05-K25 pour l'usinage de la fonte avec des fraises CHN09

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HNEF 0905DNFN-F:M5315
GradeM5315
Chipbreaker (CBMD)F
Product Number6756109
Product FamilyHNEF 09

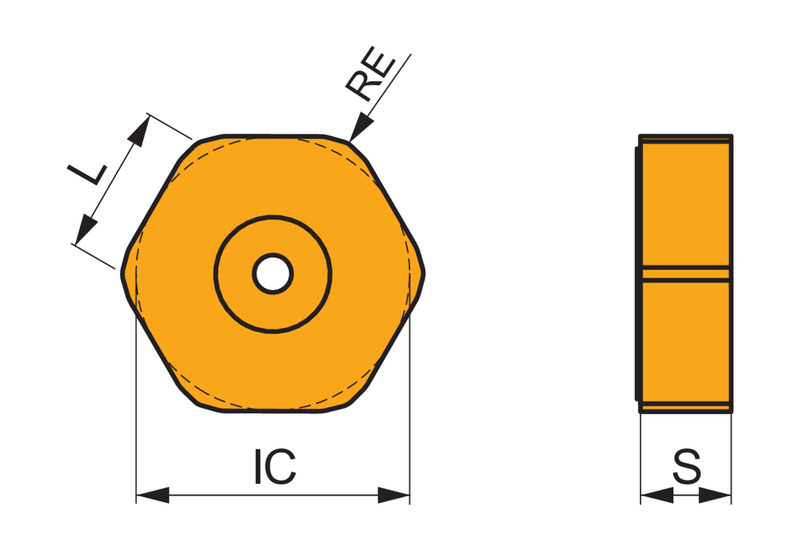

Insert Geometry
Insert DesignHFNE
Insert Shape Code (SC)H - hexagonal
Inscribed Circle Dia. — in (IC)0.638"
Inscribed Circle Dia. — mm (IC)16.2 mm
Insert Thickness — in (S)0.222"
Insert Thickness — mm (S)5.64 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6756109
EAN3603602914750
File Type Download
HNEF 0905DNFN-F:M5315 — Line Drawing PDF Download
