ZP 10ER-FM:M8345
ZP 10ER-FM:M8345

ZP 10ER-FM:M8345

UGC DOR6756111
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$40.67 CAD - $40.67 CAD
$40.67 CAD
$40.67 CAD - $40.67 CAD
$40.67 CAD

Vendu en lots de : 10

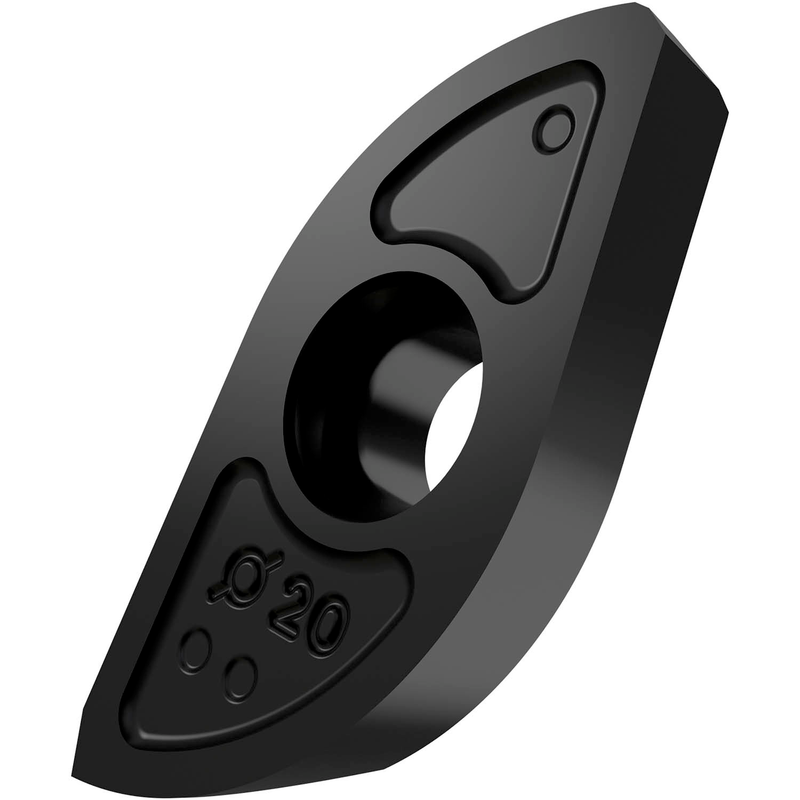

Plaquette de fraisage-copiage indexable à bout sphérique pour un diamètre de 10 mm et une profondeur de coupe maximale de 8,9 mm, géométrie FM et carbure WC-Co revêtu PVD M8345 de classe ISO P30-P50 pour l'usinage de l'acier avec les fraises à copier L2-SZ et les fraises à épaulement SLN12X

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ZP 10ER-FM:M8345
GradeM8345
Chipbreaker (CBMD)FM
Product Number6756111
Product FamilyPZ
Insert Geometry
Insert DesignPZ
Insert Shape Code (SC)X - Conception spéciale
Insert Thickness — in (S)0.067"
Insert Thickness — mm (S)1.7 mm
Depth of Cut Max — in (APMX)0.35"
Depth of Cut Max — mm (APMX)8.9 mm
Tool Information
Reference Numbers
EDP Number6756111
EAN3603602914774
File Type Download
ZP 10ER-FM:M8345 — Line Drawing PDF Download
