ZP 16ER-R:M8345
ZP 16ER-R:M8345

ZP 16ER-R:M8345

UGC DOR6756124
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$45.94 CAD - $45.94 CAD
$45.94 CAD
$45.94 CAD - $45.94 CAD
$45.94 CAD

Vendu en lots de : 10

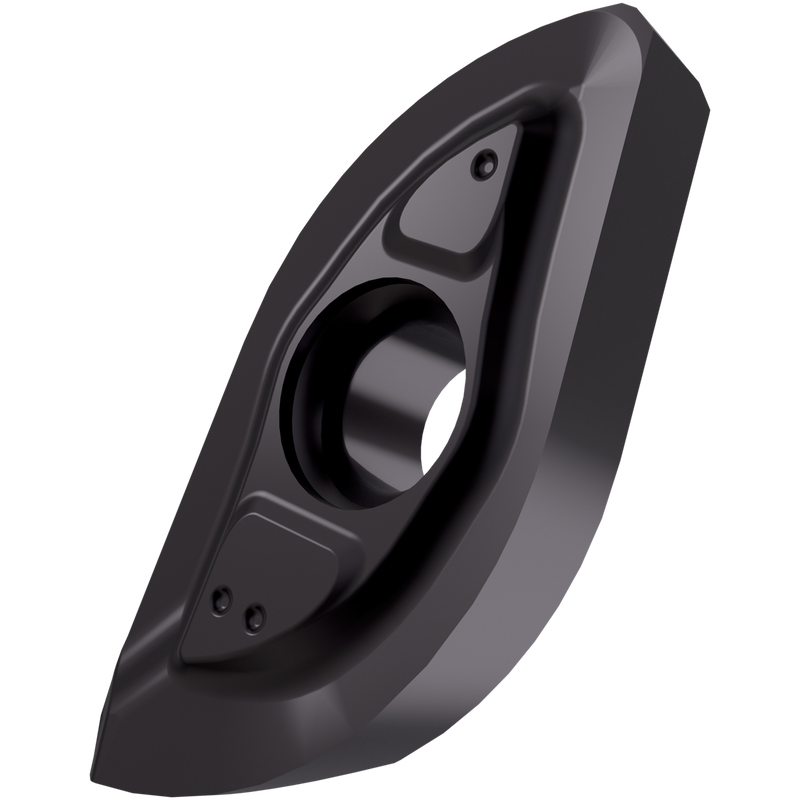

Plaquette de fraisage à copier à nez sphérique indexable pour un diamètre de 16 mm pour une profondeur de coupe maximale de 15 mm, géométrie R et carbure WC-Co revêtu PVD M8345 dans les plages de nuances ISO P30-P50 et M30-M40 pour l'usinage de l'acier et de l'acier inoxydable avec des fraises à copier L2-SZPshoulder mills SLN12X

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ZP 16ER-R:M8345
GradeM8345
Chipbreaker (CBMD)R
Product Number6756124
Product FamilyPZ
Insert Geometry
Insert DesignPZ
Insert Shape Code (SC)X - Conception spéciale
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.591"
Depth of Cut Max — mm (APMX)15.0 mm
Tool Information
Reference Numbers
EDP Number6756124
EAN3603602914903
File Type Download
ZP 16ER-R:M8345 — Line Drawing PDF Download
