ZP 20ER-R:M8345
ZP 20ER-R:M8345

ZP 20ER-R:M8345

UGC DOR6756127
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.60 CAD - $51.60 CAD
$51.60 CAD
$51.60 CAD - $51.60 CAD
$51.60 CAD

Vendu en lots de : 10

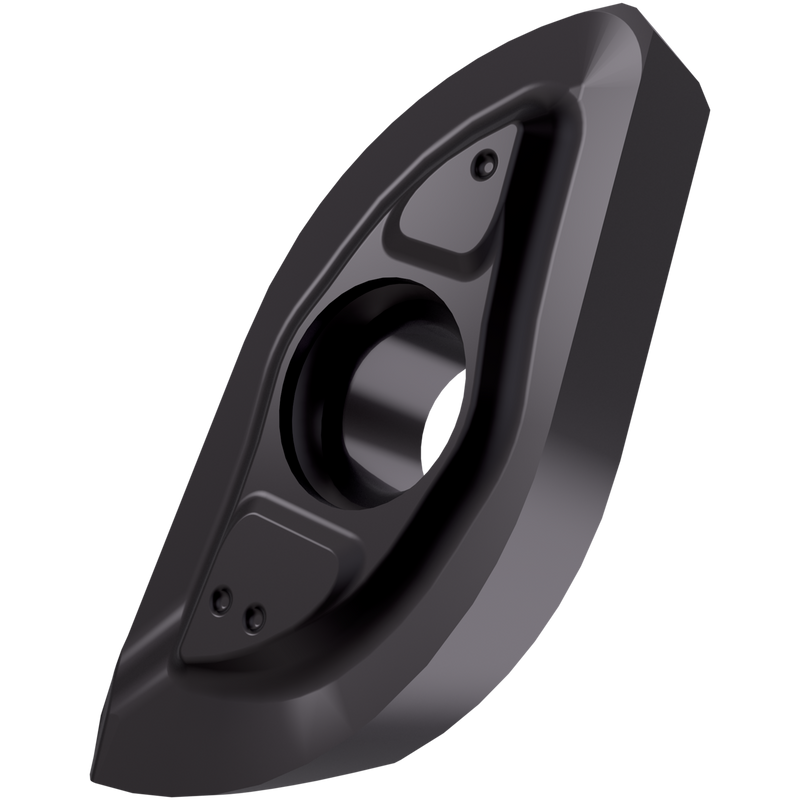

Plaquette de fraisage à copier indexable à nez sphérique d'un diamètre de 20 mm pour une profondeur de coupe maximale de 17,9 mm, géométrie R et carbure WC-Co revêtu PVD M8345 dans les plages de nuances ISO P30-P50 et M30-M40 pour l'usinage de l'acier et de l'acier inoxydable avec les fraises à copier L2-SZP et les fraises à épaulement SLN12X

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ZP 20ER-R:M8345
GradeM8345
Chipbreaker (CBMD)R
Product Number6756127
Product FamilyPZ
Insert Geometry
Insert DesignPZ
Insert Shape Code (SC)X - Conception spéciale
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Depth of Cut Max — in (APMX)0.705"
Depth of Cut Max — mm (APMX)17.9 mm
Tool Information
Reference Numbers
EDP Number6756127
EAN3603602914934
File Type Download
ZP 20ER-R:M8345 — Line Drawing PDF Download
