ZP 32ER-R:M8345
ZP 32ER-R:M8345

ZP 32ER-R:M8345

UGC DOR6756134
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$76.97 CAD - $76.97 CAD
$76.97 CAD
$76.97 CAD - $76.97 CAD
$76.97 CAD

Vendu en lots de : 5

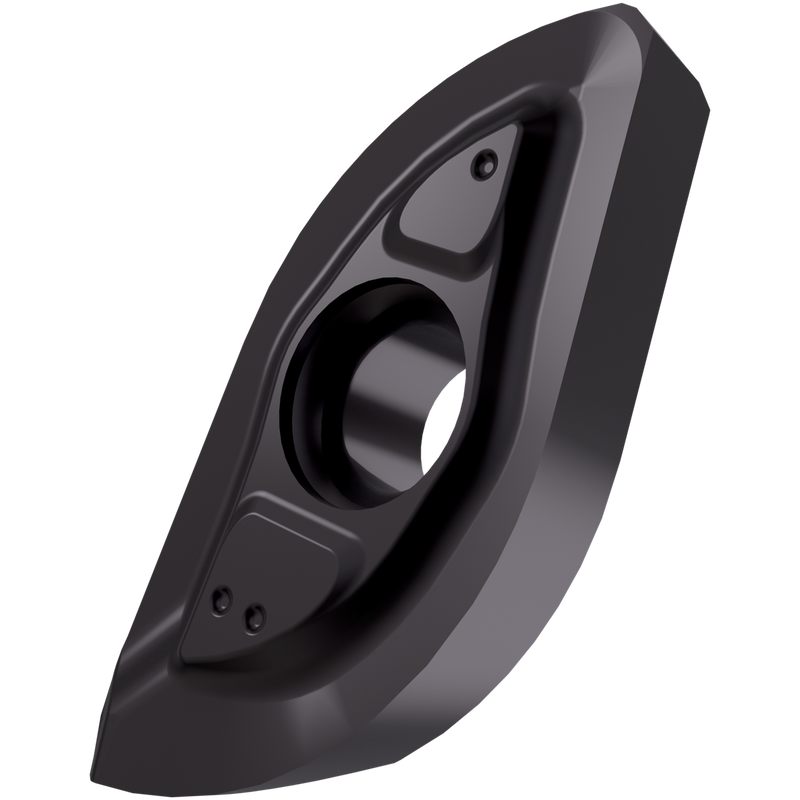

Insert à bille indexable pour copiage, diamètre 1,2598", profondeur de coupe maximale 1,126", géométrie R et carbure WC-Co revêtu PVD M8345, plages ISO P30-P50 et M30-M40 pour l'usinage d'acier et d'acier inoxydable avec fraises à copier L2-SZP fraises à épaulement SLN12X

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ZP 32ER-R:M8345
GradeM8345
Chipbreaker (CBMD)R
Product Number6756134
Product FamilyPZ
Insert Geometry
Insert DesignPZ
Insert Shape Code (SC)X - Conception spéciale
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Depth of Cut Max — in (APMX)1.126"
Depth of Cut Max — mm (APMX)28.6 mm
Tool Information
Reference Numbers
EDP Number6756134
EAN3603602915009
File Type Download

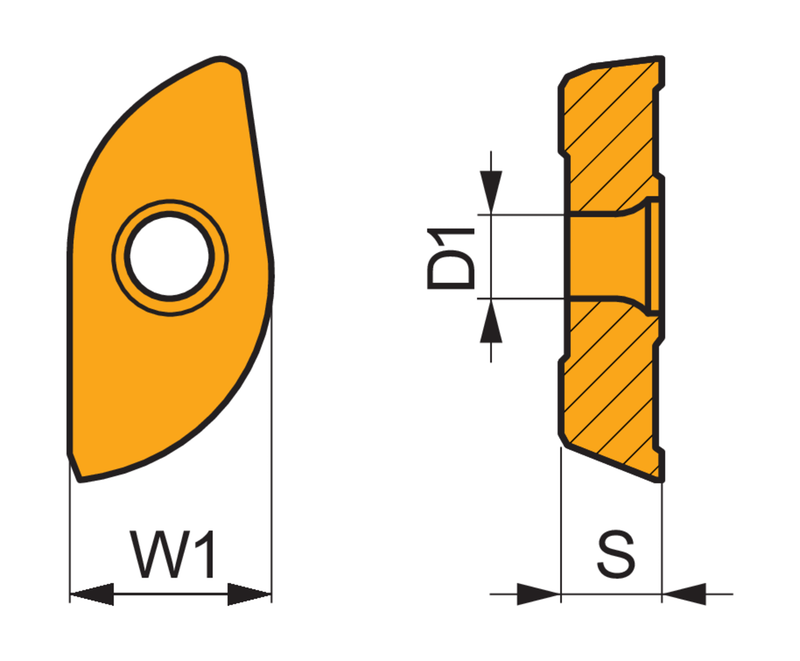

ZP 32ER-R:M8345 — Line Drawing PDF Download
