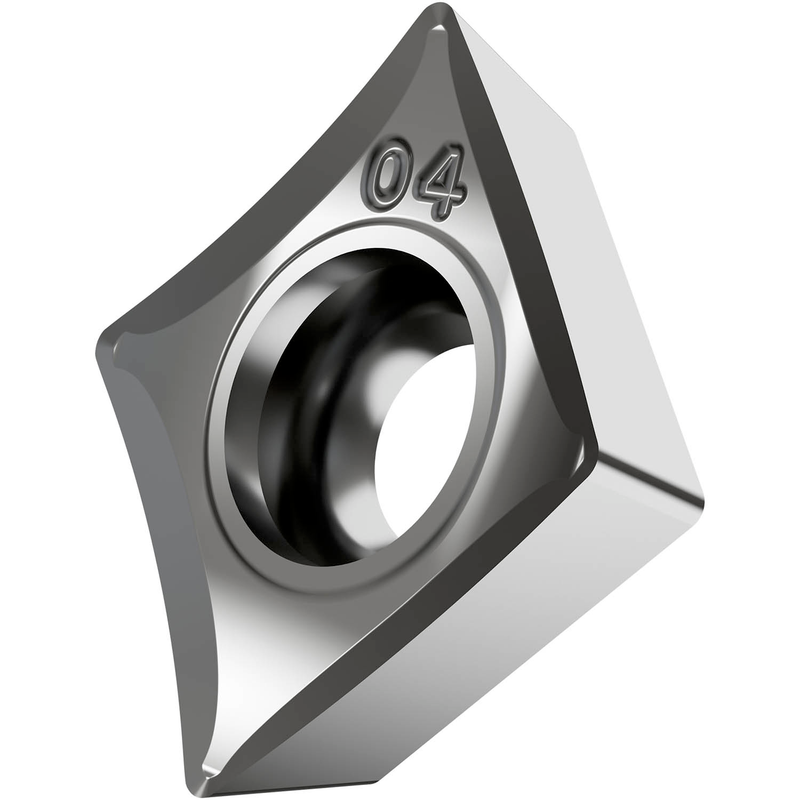

CCGT 21.50.5F-AL:T0315
CCGT 21.50.5F-AL:T0315

CCGT 21.50.5F-AL:T0315

UGC DOR6756135
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.79 CAD - $19.79 CAD
$19.79 CAD
$19.79 CAD - $19.79 CAD
$19.79 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 1/4", épaisseur de 3/32", rayon de bec de 1/128", précision d'indexage selon la classe de tolérance ISO- G, brise-copeaux AL avec arêtes vives, en nuance T0315, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO N05 - N20, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)CCGT 21.50.5F-AL:T0315
Product Name (ISO)CCGT 060202F-AL:T0315
GradeT0315
Chipbreaker (CBMD)AL
Product Number6756135
Product FamilyTACG
Insert Geometry
Insert DesignTACG
Insert Shape Code (SC)C - angle interne rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6756135
EAN3603602915016
File Type Download
CCGT 21.50.5F-AL:T0315 — Line Drawing PDF Download
