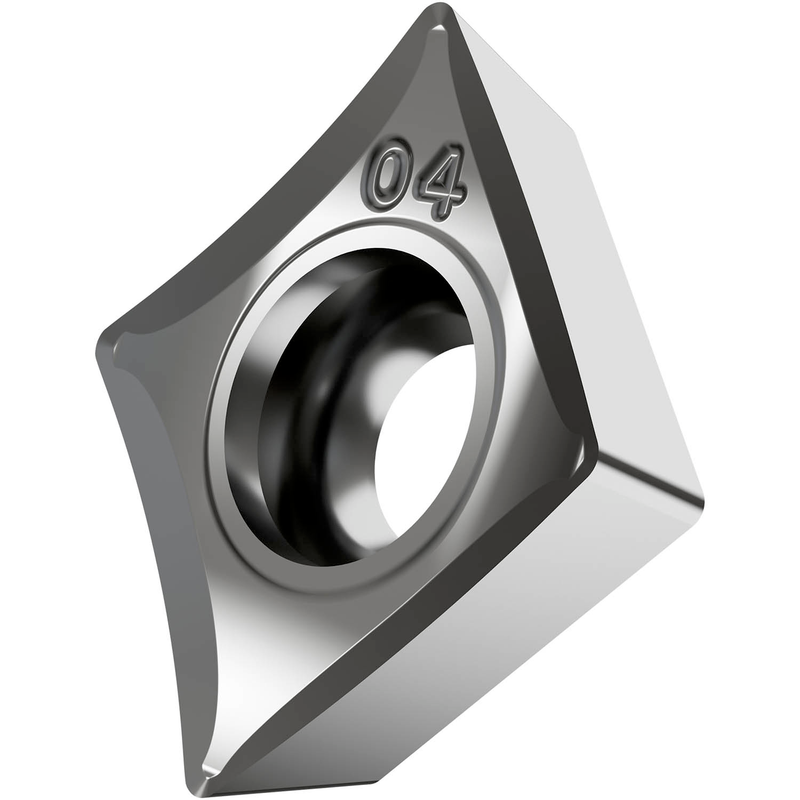

CCGT 32.52F-AL:T0315
CCGT 32.52F-AL:T0315

CCGT 32.52F-AL:T0315

UGC DOR6756139
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.79 CAD - $19.79 CAD
$19.79 CAD
$19.79 CAD - $19.79 CAD
$19.79 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïdale 80° avec dépouille 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 1/32", précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux AL avec arêtes de coupe vives, en nuance T0315, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO N05 - N20, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)CCGT 32.52F-AL:T0315
Product Name (ISO)CCGT 09T308F-AL:T0315
GradeT0315
Chipbreaker (CBMD)AL
Product Number6756139
Product FamilyTACG
Insert Geometry
Insert DesignTACG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number6756139
EAN3603602915054
File Type Download
CCGT 32.52F-AL:T0315 — Line Drawing PDF Download
