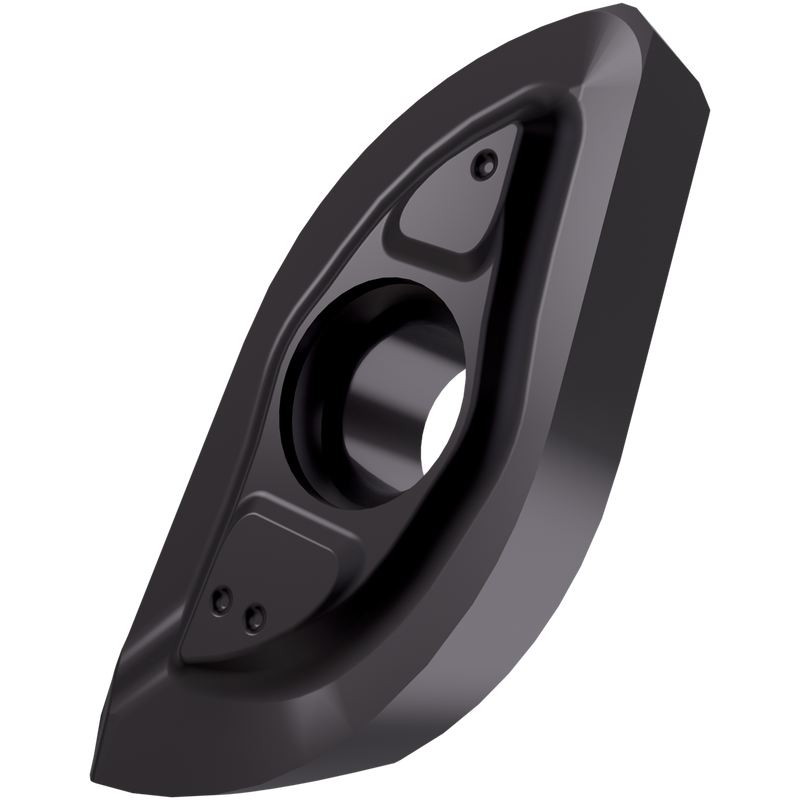

ZP 50ER-R:M8345
ZP 50ER-R:M8345

ZP 50ER-R:M8345

UGC DOR6756143
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$192.86 CAD - $192.86 CAD
$192.86 CAD
$192.86 CAD - $192.86 CAD
$192.86 CAD

Vendu en lots de : 5

Fraise à copier indexable à segment sphérique pour un diamètre de 1,9685" et une profondeur de coupe maximale de 1,7598", géométrie R et carbure WC-Co revêtu PVD M8345 dans les plages de grades ISO P30-P50 et M30-M40 pour l'usinage de l'acier et de l'acier inoxydable avec les fraises à copier L2-SZP et les fraises à épaulement SLN12X

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ZP 50ER-R:M8345
GradeM8345
Chipbreaker (CBMD)R
Product Number6756143
Product FamilyPZ
Insert Geometry
Insert DesignPZ
Insert Shape Code (SC)X - Conception spéciale
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Depth of Cut Max — in (APMX)1.76"
Depth of Cut Max — mm (APMX)44.7 mm
Tool Information
Reference Numbers
EDP Number6756143
EAN3603602915092
File Type Download
ZP 50ER-R:M8345 — Line Drawing PDF Download
