TCMT 1.81.51-FF2:T5315
TCMT 1.81.51-FF2:T5315

TCMT 1.81.51-FF2:T5315

UGC DOR6756144
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.07 CAD - $9.07 CAD
$9.07 CAD
$9.07 CAD - $9.07 CAD
$9.07 CAD

Vendu en lots de : 10

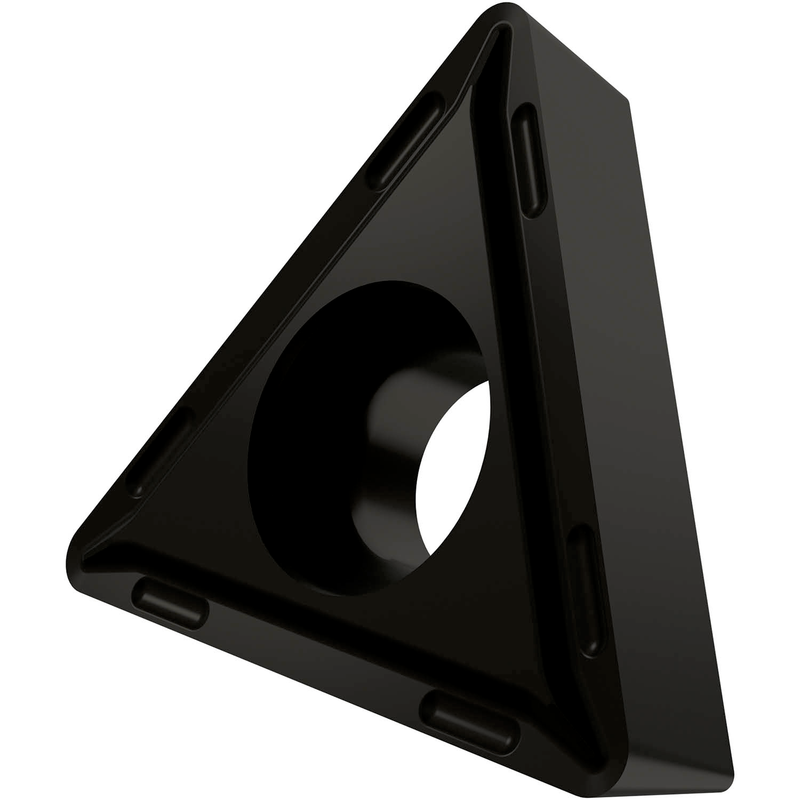

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 7/32, épaisseur de 3/32", rayon de bec de 1/64" et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux FF2, en nuance T5315, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10-K25, pour l'usinage fin à moyen des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 1.81.51-FF2:T5315
Product Name (ISO)TCMT 090204E-FF2:T5315
GradeT5315
Chipbreaker (CBMD)FF2
Product Number6756144
Product FamilyCMTC
Insert Geometry
Insert DesignTCMT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.219"
Inscribed Circle Dia. — mm (IC)5.56 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number6756144
EAN3603602915108
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
TCMT 1.81.51-FF2:T5315 — Line Drawing PDF Download
