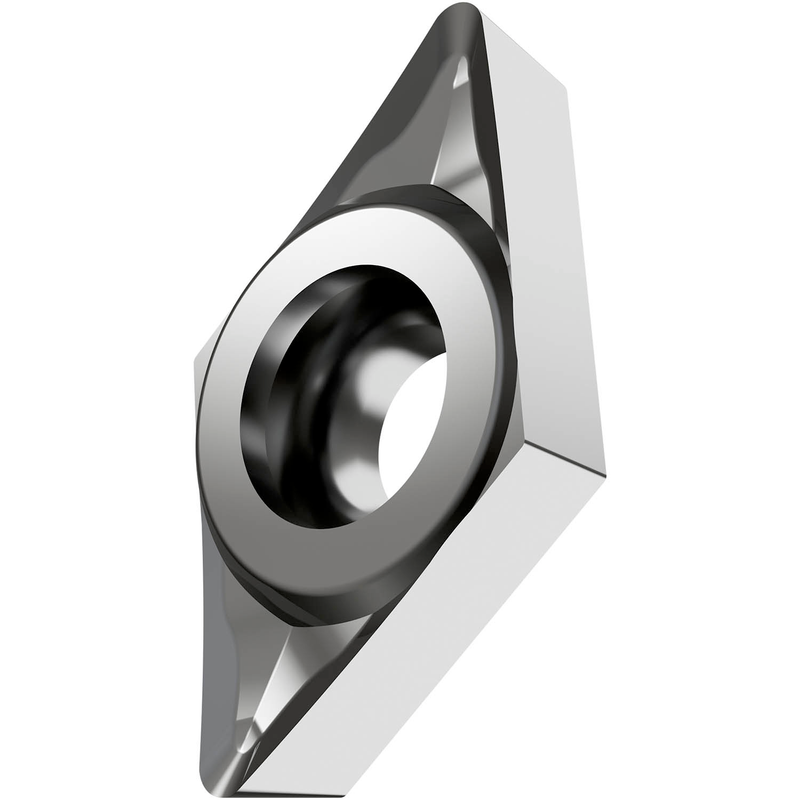

DCGT 21.51F-AL:T0315
DCGT 21.51F-AL:T0315

DCGT 21.51F-AL:T0315

UGC DOR6756146
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.33 CAD - $21.33 CAD
$21.33 CAD
$21.33 CAD - $21.33 CAD
$21.33 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïdale 55° avec dépouille 7°, diamètre du cercle inscrit de 1/4", 3/32" d'épaisseur, rayon de bec de 1/64", précision de positionnement selon la classe de tolérance ISO G, brise-copeaux AL avec arêtes de coupe vives, en nuance T0315, un carbure WC-Co à grain fin revêtu PVD dans la plage ISO N05 - N20, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)DCGT 21.51F-AL:T0315
Product Name (ISO)DCGT 070204F-AL:T0315
GradeT0315
Chipbreaker (CBMD)AL
Product Number6756146
Product FamilyDCGT
Insert Geometry
Insert DesignDCGT
Insert Shape Code (SC)D - angle inclus rhomboïdal 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.083"
Depth of Cut Max — mm (APMX)2.1 mm
Tool Information
Reference Numbers
EDP Number6756146
EAN3603602915122
File Type Download
DCGT 21.51F-AL:T0315 — Line Drawing PDF Download
