RCGT 1003MOF-AL:T0315
RCGT 1003MOF-AL:T0315

RCGT 1003MOF-AL:T0315

UGC DOR6756151
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.71 CAD - $17.71 CAD
$17.71 CAD
$17.71 CAD - $17.71 CAD
$17.71 CAD

Vendu en lots de : 10

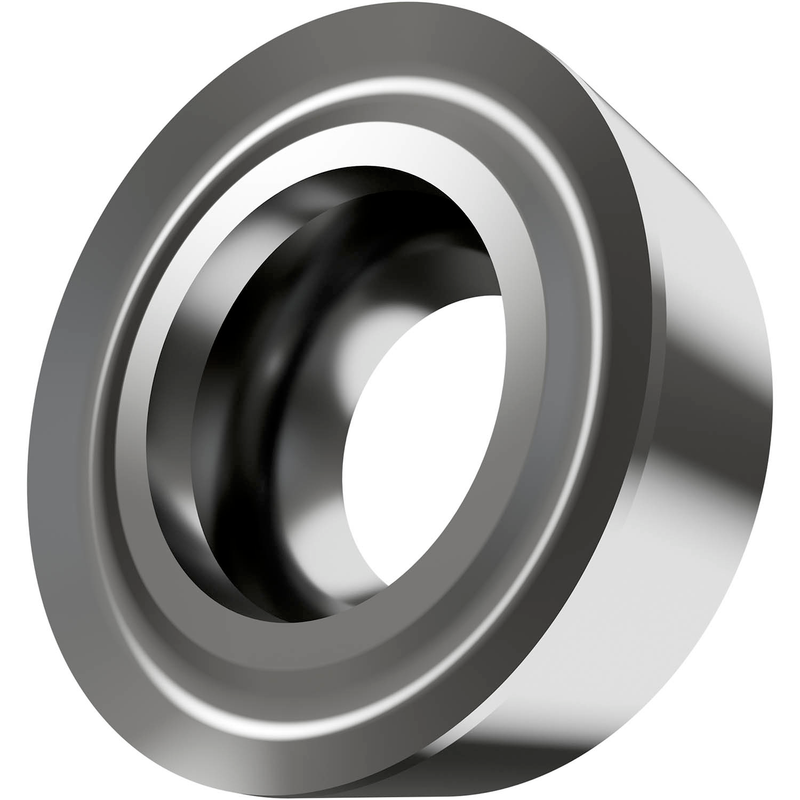

Plaquette de tournage positive simple face, ronde avec un angle de dépouille de 7°, un diamètre de 10 mm, une épaisseur de 3,18 mm, une précision d'indexage selon la classe de tolérance ISO-G, un brise-copeaux AL avec des arêtes vives, en nuance T0315, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO N05-N30, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCGT 1003MOF-AL:T0315
GradeT0315
Chipbreaker (CBMD)AL
Product Number6756151
Product FamilyRCGT
Insert Geometry
Insert DesignRCGT
Insert Shape Code (SC)R - tour
Insert Geometry
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6756151
EAN3603602915177
File Type Download

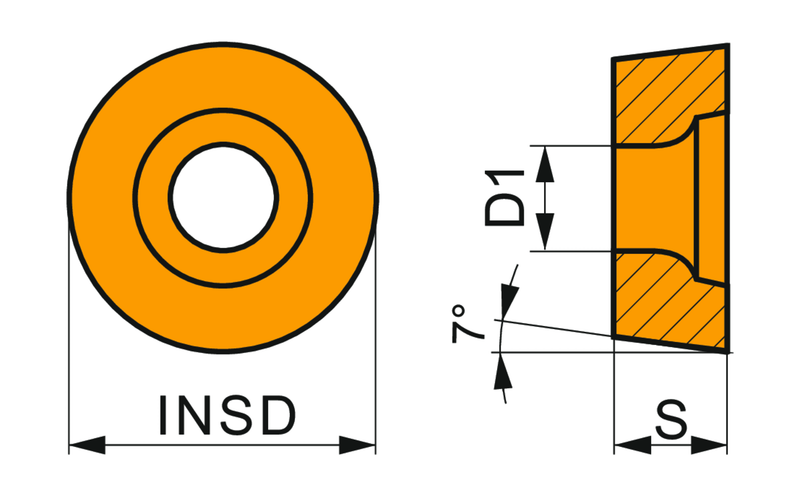

RCGT 1003MOF-AL:T0315 — Line Drawing PDF Download
