SCGT 432F-AL:T0315
SCGT 432F-AL:T0315

SCGT 432F-AL:T0315

UGC DOR6756152
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.86 CAD - $22.86 CAD
$22.86 CAD
$22.86 CAD - $22.86 CAD
$22.86 CAD

Vendu en lots de : 10

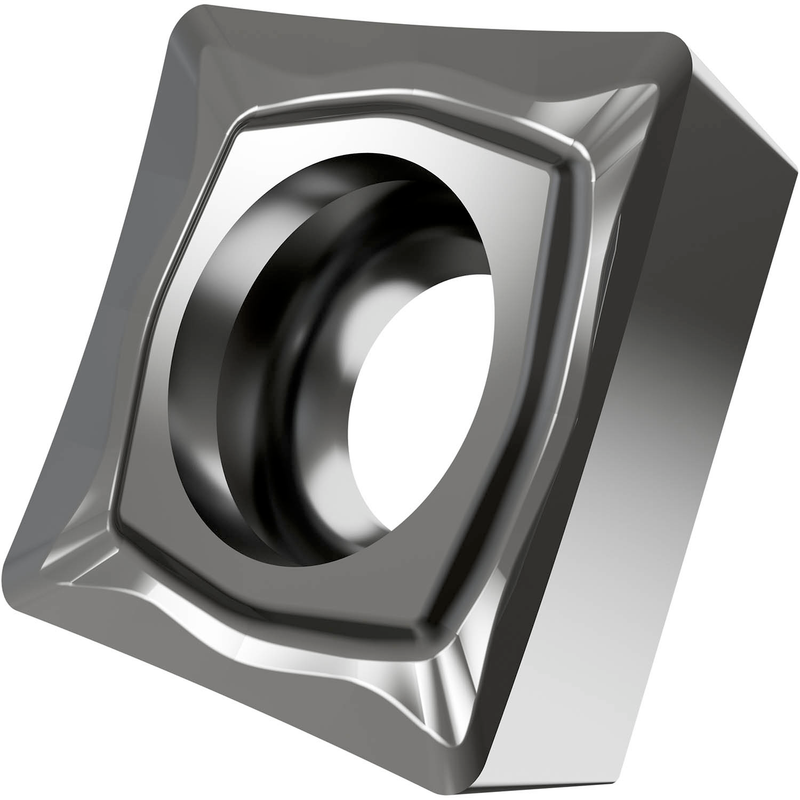

Plaquette de tournage positive simple face, carrée avec un angle de dépouille de 7°, diamètre du cercle inscrit de 12,70 mm (1/2"), épaisseur de 4,76 mm (3/16"), rayon de bec de 0,79 mm (1/32"), précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux AL avec arêtes de coupe vives, en nuance T0315, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO N05 - N20, pour l'usinage léger à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)SCGT 432F-AL:T0315
Product Name (ISO)SCGT 120408F-AL:T0315
GradeT0315
Chipbreaker (CBMD)AL
Product Number6756152
Product FamilySCGT

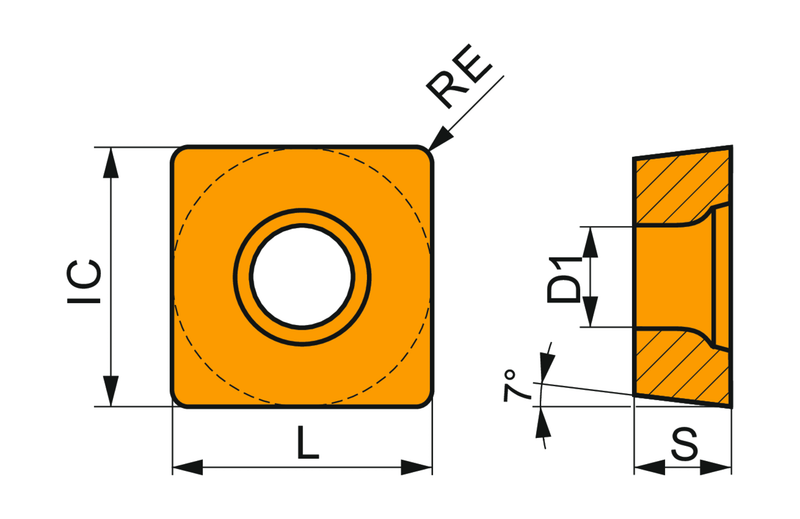

Insert Geometry
Insert DesignSCGT
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.276"
Depth of Cut Max — mm (APMX)7.0 mm
Tool Information
Reference Numbers
EDP Number6756152
EAN3603602915184
File Type Download
SCGT 432F-AL:T0315 — Line Drawing PDF Download
