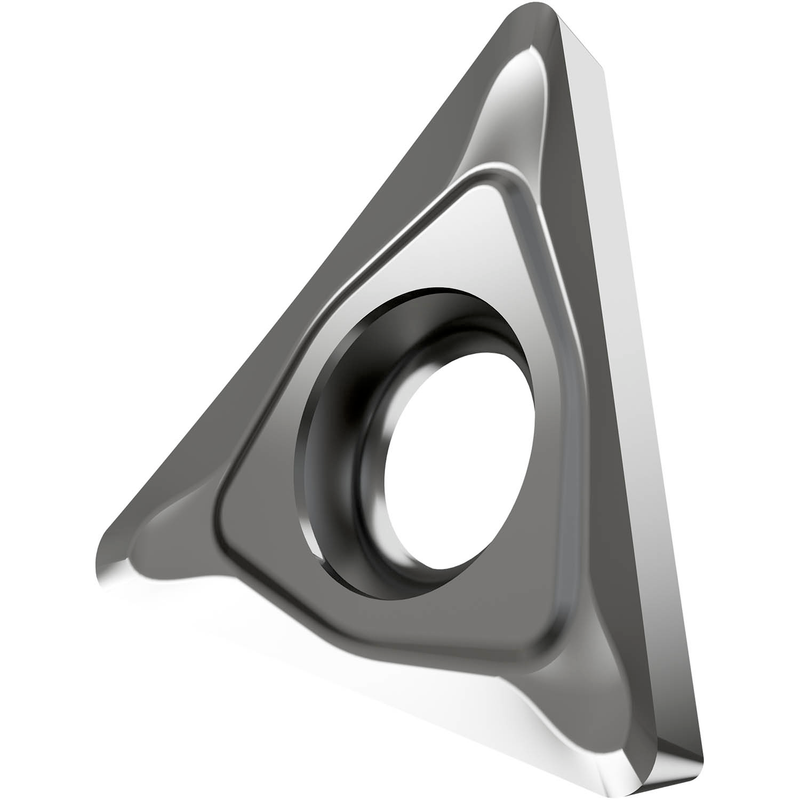

TCGT 1.81.51F-AL:T0315
TCGT 1.81.51F-AL:T0315

TCGT 1.81.51F-AL:T0315

UGC DOR6756154
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.11 CAD - $18.11 CAD
$18.11 CAD
$18.11 CAD - $18.11 CAD
$18.11 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 7/32, épaisseur de 3/32", rayon de bec de 1/64", précision d'indexage selon la classe de tolérance ISO G, brise-copeaux AL avec arêtes vives, en nuance T0315, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO N05 - N20, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)TCGT 1.81.51F-AL:T0315
Product Name (ISO)TCGT 090204F-AL:T0315
GradeT0315
Chipbreaker (CBMD)AL
Product Number6756154
Product FamilyCTGA
Insert Geometry
Insert DesignCTFG
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.219"
Inscribed Circle Dia. — mm (IC)5.56 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6756154
EAN3603602915207
File Type Download
TCGT 1.81.51F-AL:T0315 — Line Drawing PDF Download
