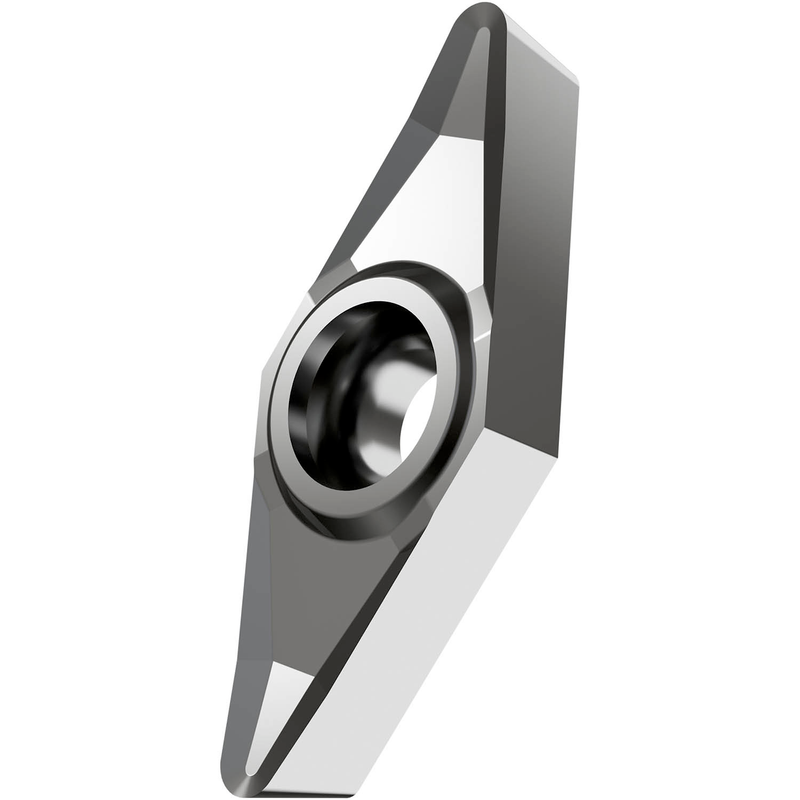

VCGT 221F-AL:T0315
VCGT 221F-AL:T0315

VCGT 221F-AL:T0315

UGC DOR6756161
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.97 CAD - $28.97 CAD
$28.97 CAD
$28.97 CAD - $28.97 CAD
$28.97 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 1/4", épaisseur 1/8", rayon de bec 1/64", précision d'indexage selon la classe de tolérance ISO G, brise-copeaux AL à arêtes vives, en nuance T0315, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO N05 - N20, pour l'usinage léger à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 221F-AL:T0315
Product Name (ISO)VCGT 110304F-AL:T0315
GradeT0315
Chipbreaker (CBMD)AL
Product Number6756161
Product FamilyTVGC
Insert Geometry
Insert DesignTVGC
Insert Shape Code (SC)V - angle de 35° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.11"
Depth of Cut Max — mm (APMX)2.8 mm
Tool Information
Reference Numbers
EDP Number6756161
EAN3603602915276
File Type Download
VCGT 221F-AL:T0315 — Line Drawing PDF Download
