PNMU 1308DNSR-M:M8345
PNMU 1308DNSR-M:M8345

PNMU 1308DNSR-M:M8345

UGC DOR6756164
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$56.74 CAD - $56.74 CAD
$56.74 CAD
$56.74 CAD - $56.74 CAD
$56.74 CAD

Vendu en lots de : 5

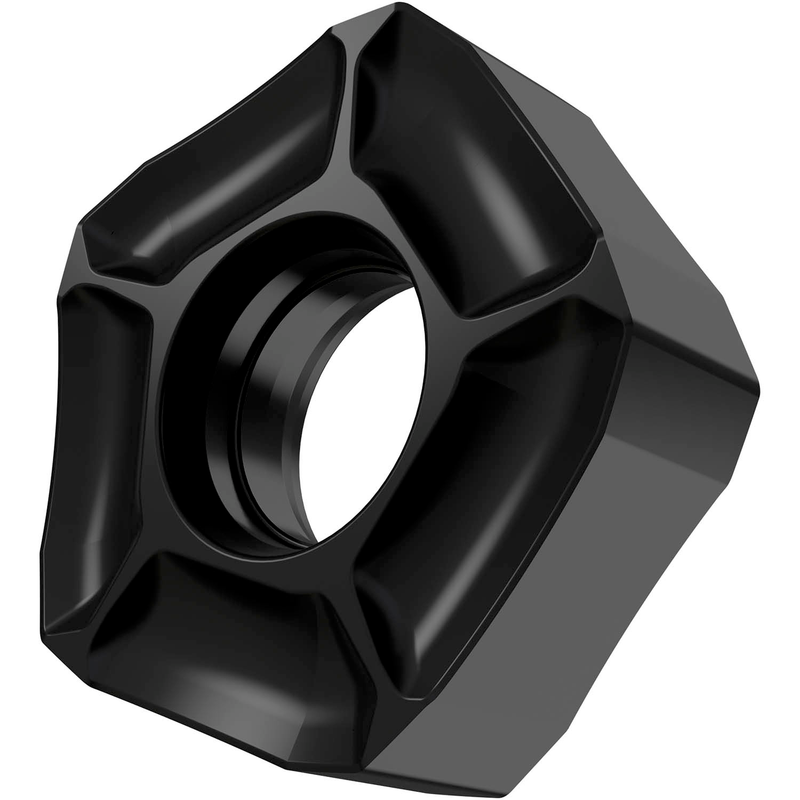

Plaquette de fraisage double face PNMU 1308 avec brise-copeaux, pentagonale pour une profondeur de coupe maximale de 10 mm, avec rayon de coin ", une précision d'indexage selon la classe de tolérance ISO-M et géométrie M avec arêtes de coupe arrondies et facette, M8345 WC-Co carbure revêtu PVD dans la gamme de nuances ISO P30-P50 pour l'usinage de l'acier avec les fraises à surfacer SPN13

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PNMU 1308DNSR-M:M8345
GradeM8345
Chipbreaker (CBMD)M
Product Number6756164
Product FamilyPNMU 13
Insert Geometry
Insert DesignPNMU
Insert Shape Code (SC)P - pentagonal
Inscribed Circle Dia. — in (IC)0.961"
Inscribed Circle Dia. — mm (IC)24.4 mm
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number6756164
EAN3603602915306
File Type Download

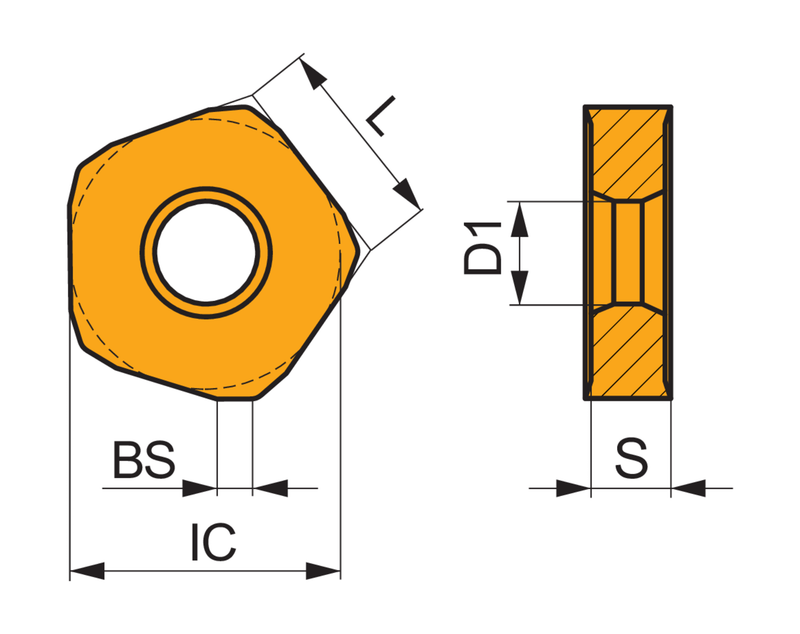

PNMU 1308DNSR-M:M8345 — Line Drawing PDF Download
