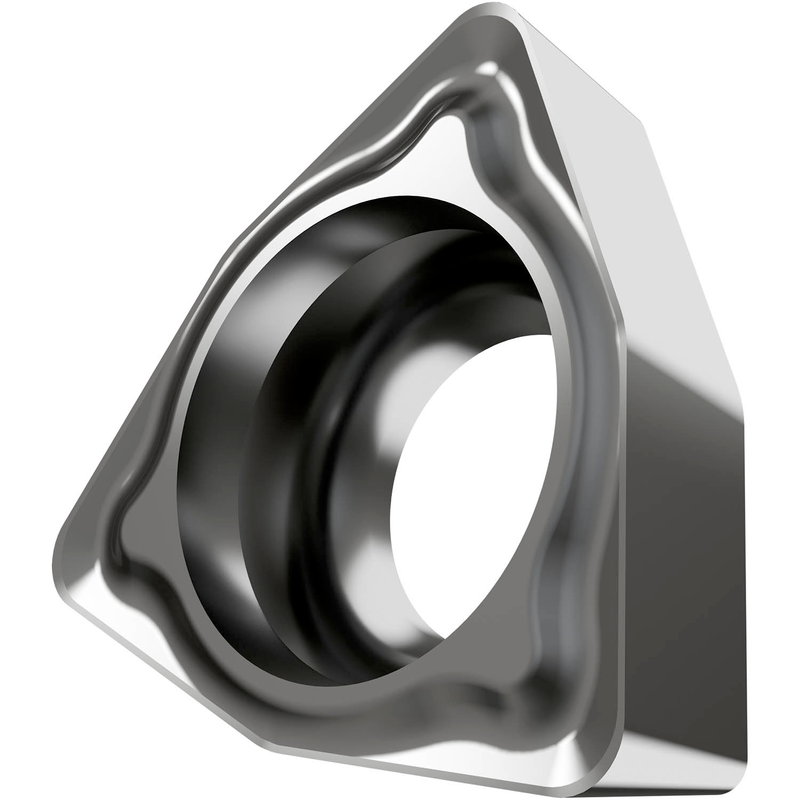

WCGT 1.210.5-FF2:HF7
WCGT 1.210.5-FF2:HF7

WCGT 1.210.5-FF2:HF7

UGC DOR6756166
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.76 CAD - $11.76 CAD
$11.76 CAD
$11.76 CAD - $11.76 CAD
$11.76 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, trigonale 80° avec dépouille de 7°, diamètre du cercle inscrit de 5/32", épaisseur de 1/16", rayon de bec de 1/128" et précision d'indexage selon la classe de tolérance ISO G, brise-copeaux FF2, en nuance HF7, un carbure WC-Co micrograin non revêtu dans la gamme ISO K10-K25, pour l'usinage fin à moyen des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)WCGT 1.210.5-FF2:HF7
Product Name (ISO)WCGT 020102E-FF2:HF7
GradeHF7
Chipbreaker (CBMD)FF2
Product Number6756166
Product FamilyCMGT
Insert Geometry
Insert DesignWCGT
Insert Shape Code (SC)W - trigonale
Insert Geometry
Inscribed Circle Dia. — in (IC)0.156"
Inscribed Circle Dia. — mm (IC)3.97 mm
Insert Thickness — in (S)0.063"
Insert Thickness — mm (S)1.59 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.055"
Depth of Cut Max — mm (APMX)1.4 mm
Tool Information
Reference Numbers
EDP Number6756166
EAN3603602915320
File Type Download
WCGT 1.210.5-FF2:HF7 — Line Drawing PDF Download
