HNEF 090508EN-M:M5315
HNEF 090508EN-M:M5315

HNEF 090508EN-M:M5315

UGC DOR6756169
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$38.91 CAD - $38.91 CAD
$38.91 CAD
$38.91 CAD - $38.91 CAD
$38.91 CAD

Vendu en lots de : 10

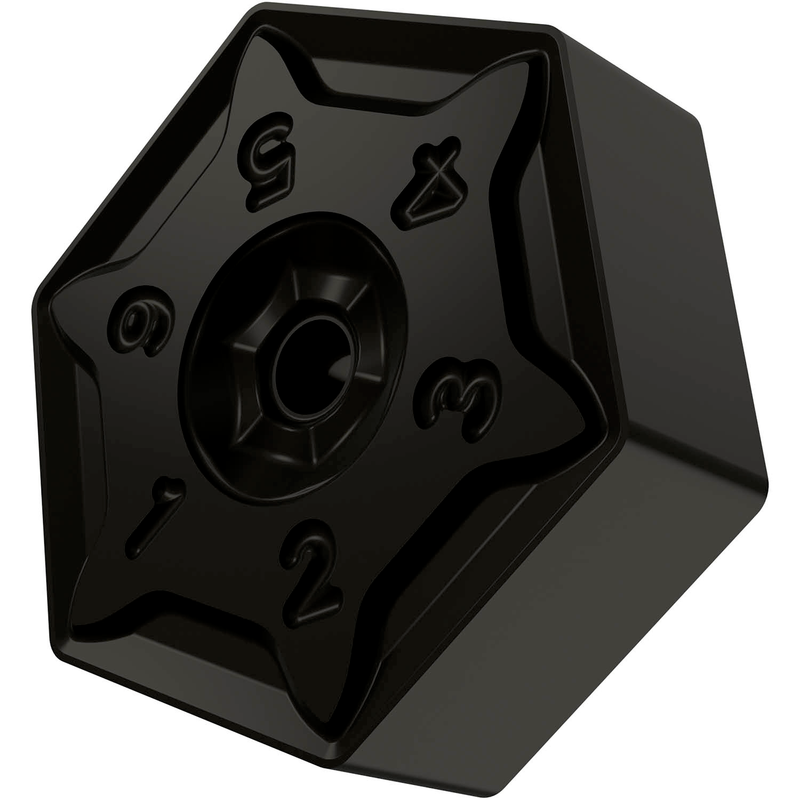

Plaquette de fraisage double face HNEF 090508E avec brise-copeaux, hexagonale pour une profondeur de coupe maximale de 3,99 mm, avec un rayon de coin de 0,80 mm, une précision d'indexation selon la classe de tolérance ISO-E et une géométrie M avec des arêtes de coupe arrondies, carbure WC-Co revêtu MT-CVD M5315 dans la gamme de nuances ISO K05-K25 pour l'usinage de la fonte avec des fraises à surfacer CHN09

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HNEF 090508EN-M:M5315
GradeM5315
Chipbreaker (CBMD)M
Product Number6756169
Product FamilyHNEF 09

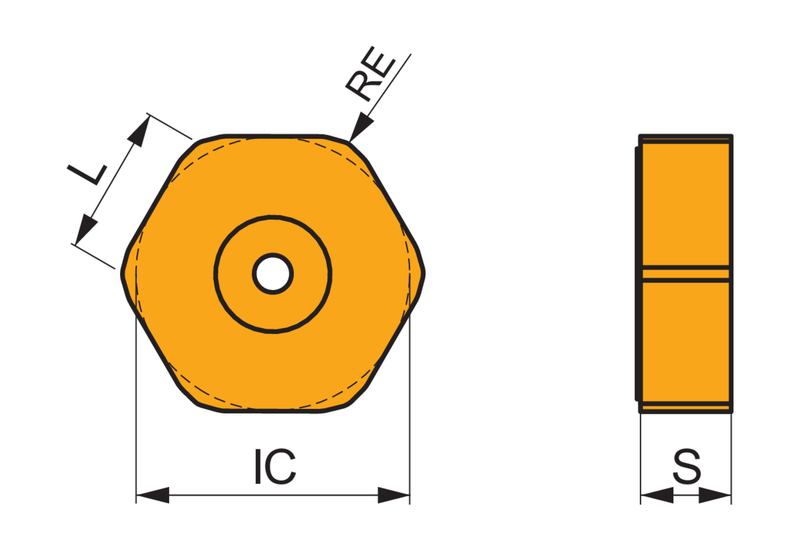

Insert Geometry
Insert DesignHNEF
Insert Shape Code (SC)H - hexagonal
Inscribed Circle Dia. — in (IC)0.638"
Inscribed Circle Dia. — mm (IC)16.2 mm
Insert Thickness — in (S)0.222"
Insert Thickness — mm (S)5.64 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6756169
EAN3603602915351
File Type Download
HNEF 090508EN-M:M5315 — Line Drawing PDF Download
