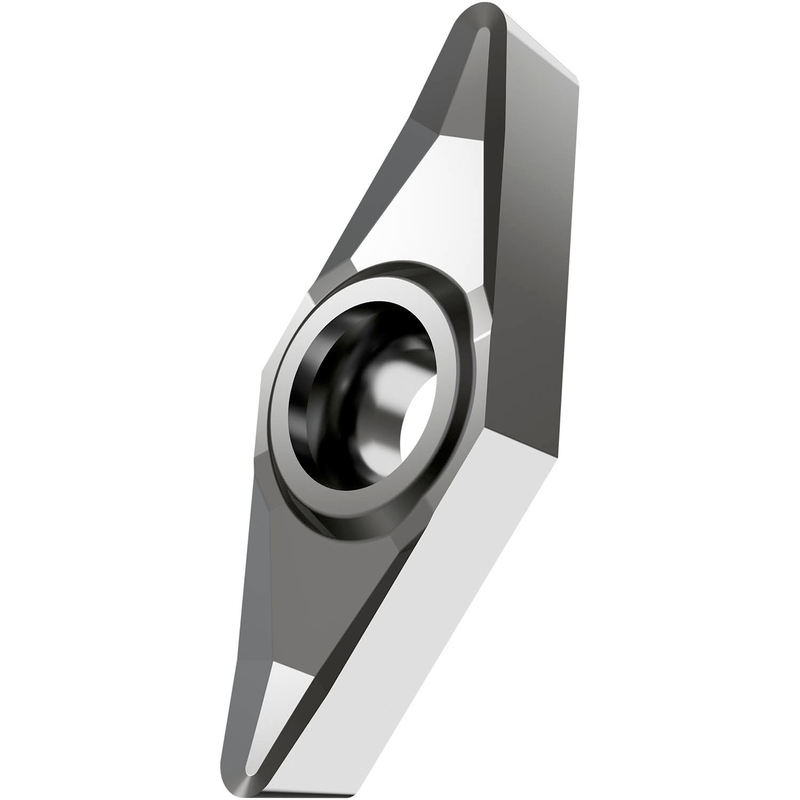

VCGT 330.5F-AL:T0315
VCGT 330.5F-AL:T0315

VCGT 330.5F-AL:T0315

UGC DOR6756171
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.61 CAD - $32.61 CAD
$32.61 CAD
$32.61 CAD - $32.61 CAD
$32.61 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 3/8", épaisseur de 3/16", rayon de bec de 1/128", précision de positionnement selon la classe de tolérance ISO G, brise-copeaux AL à arêtes vives, en nuance T0315, un carbure WC-Co à grains fins revêtu PVD dans la gamme ISO N05 - N20, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 330.5F-AL:T0315
Product Name (ISO)VCGT 160402F-AL:T0315
GradeT0315
Chipbreaker (CBMD)AL
Product Number6756171
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angulaire 35° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6756171
EAN3603602915375
File Type Download
VCGT 330.5F-AL:T0315 — Line Drawing PDF Download
