HNMF 090516SN-R:M5315
HNMF 090516SN-R:M5315

HNMF 090516SN-R:M5315

UGC DOR6756173
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.97 CAD - $34.97 CAD
$34.97 CAD
$34.97 CAD - $34.97 CAD
$34.97 CAD

Vendu en lots de : 10

Plaquette de fraisage double face HNMF 0905 avec brise-copeaux, de forme hexagonale pour une profondeur de coupe maximale de 6 mm, avec un rayon de coin de 1,6 mm, une précision de positionnement selon la classe de tolérance ISO M et une géométrie R avec arêtes de coupe arrondies et facette, en carbure WC-Co revêtu MT-CVD M5315 dans la gamme de nuances ISO K05-K25 pour l'usinage de la fonte avec les fraises CHN09

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HNMF 090516SN-R:M5315
GradeM5315
Chipbreaker (CBMD)R
Product Number6756173
Product FamilyHNMF 09

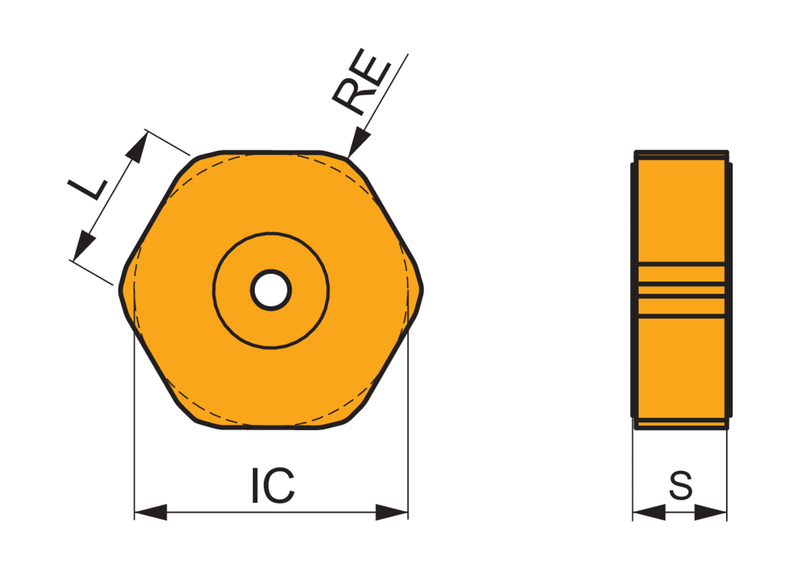

Insert Geometry
Insert DesignHFNM
Insert Shape Code (SC)H - hexagonale
Inscribed Circle Dia. — in (IC)0.638"
Inscribed Circle Dia. — mm (IC)16.2 mm
Insert Thickness — in (S)0.222"
Insert Thickness — mm (S)5.64 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Reference Numbers
EDP Number6756173
EAN3603602915399
File Type Download
HNMF 090516SN-R:M5315 — Line Drawing PDF Download
