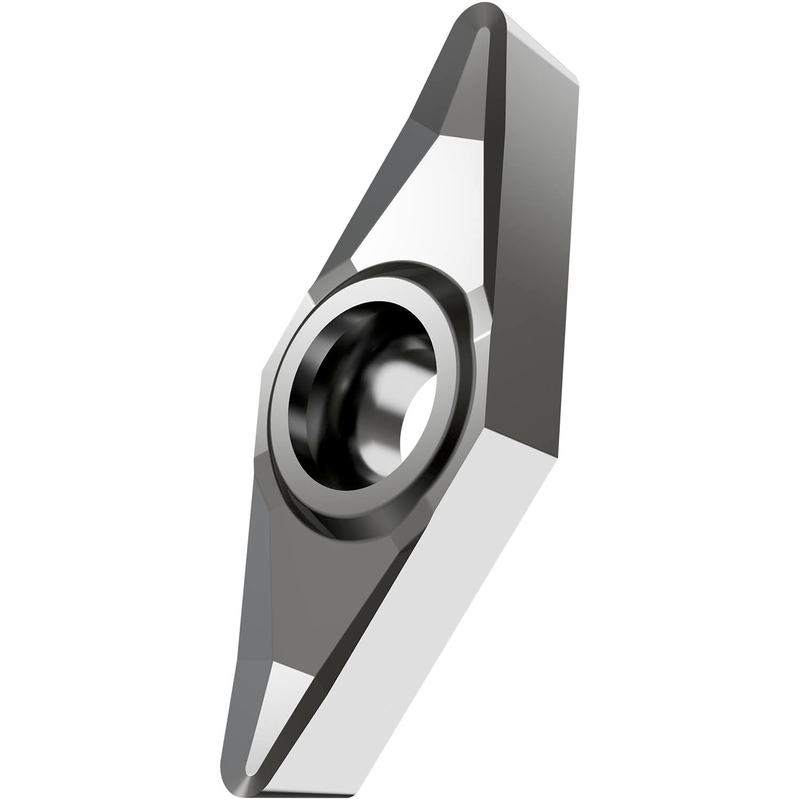

VCGT 332F-AL:T0315
VCGT 332F-AL:T0315

VCGT 332F-AL:T0315

UGC DOR6756176
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.57 CAD - $30.57 CAD
$30.57 CAD
$30.57 CAD - $30.57 CAD
$30.57 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 3/8", épaisseur 3/16", rayon de bec 1/32", précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux AL à arêtes vives, en nuance T0315, un carbure WC-Co à grains fins revêtu PVD dans la plage ISO N05 - N20, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 332F-AL:T0315
Product Name (ISO)VCGT 160408F-AL:T0315
GradeT0315
Chipbreaker (CBMD)AL
Product Number6756176
Product FamilyTGVC
Insert Geometry
Insert DesignTVCG
Insert Shape Code (SC)V - angle d'inclinaison 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6756176
EAN3603602915429
File Type Download
VCGT 332F-AL:T0315 — Line Drawing PDF Download
